1988 Honda RS125R - F14 Cowl / Tachometer

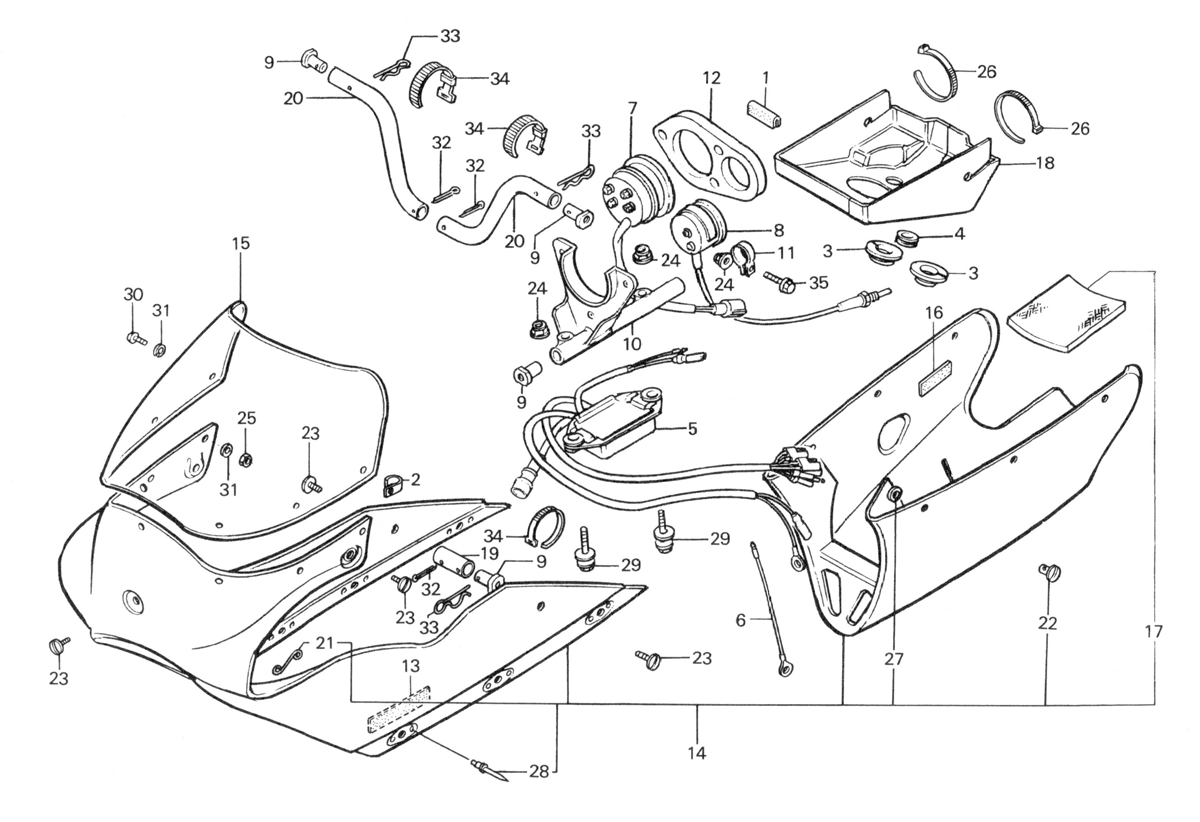

1988 Honda RS125R - F14 Cowl / Tachometer Image

This image is the property and copyright of Honda Racing Corporation.


Ref Part Number Description Qty Req Qty 1 Price Buy
1 17521-HA7-670 RUBBER, PROTECTOR FUEL TANK 1 2.75
2 17521-NC2-000 HOOK, FUEL CAP BREATHER (se) 1 0.00
3 19114-MF9-000 RUBBER, WATER GUIDE (se) 2 0.00
4 19615-GJ5-000 RUBBER, SHROUD MOUNT (se) 1 0.00
5 30400-NF4-003 UNIT ASSY CDI (se) 1 0.00
6 32110-NF4-000 SUB CORD,ENG (se) 1 0.00
7 37250-NF4-008 METER ASSY, TACHOMETER [USE 37250-NF4-771] 1 316.70
8 37460-NF4-030 METER ASSY, WATER TEMPERATURE (se) 1 0.00
9 50803-ND4-750 NUT, COWL STAY (se) 5 0.00
10 50810-NF4-750 Ask for Quote 1 0.00
11 50811-ND4-750 BAND (D=25.4mm) (se) 1 0.00
12 50815-NF4-000 PANEL, METER (se) 1 0.00
13 52459-ND5-750 RUBBER, TANK REAR CUSHION (se) 1 0.00
14 64100-NF4-750 Ask for Quote 1 0.00
15 64101-NF4-750 Ask for Quote 1 0.00
16 64105-NF4-000 RUBBER, COWLING (se) 1 0.00
17 64109-ND5-750 SHEET, HEAT PROOF (se) 1 0.00
18 64110-NF4-750 Ask for Quote 1 0.00
19 64210-NF4-000 STAY, FRONT COWL SIDE (se) 1 0.00
20 64240-NF4-000 STAY, FRONT COWL TOP (1987-1994) (se) [USE 64240-NF4-000R] 2 24.80
21 64246-NC2-300 SPRING, COWLING SET (se) 6 0.00
22 64255-NC2-000 FASTENER,COWLING (se) 6 0.00
23 90106-NF4-000 BOLT, COWL SET (6x12) [USE 90106-NF4-770] 5 3.90
24 90301-473-003 U-NUT (6mm) 3 4.15
25 90310-NF4-000 NUT,SELF LOCK 3MM (se) 7 1.60
26 90651-NC8-000 TY-WRAP (3.6x281) 2 1.70
27 90654-NC8-000 GROMMET, FASTENER 6 0.90
28 91080-NC8-300 RIVET (3.2x6.4) 12 0.30
29 93404-06040-00 BOLT, WASHER (6x40) 2 0.60
30 93500-03012-0A SCREW, PAN (3x12) 7 0.40
31 94101-03000 WASHER, PLAIN (3mm) 14 0.35
32 94201-25300 PIN, SPLIT (2.5mm) 4 0.40
33 94252-16100 PIN, LOCK (16mm) 4 0.80
34 95014-62200 STRAP 3 1.15
35 96001-06022-00 BOLT, FLANGE SH (6x22) 1 0.80
