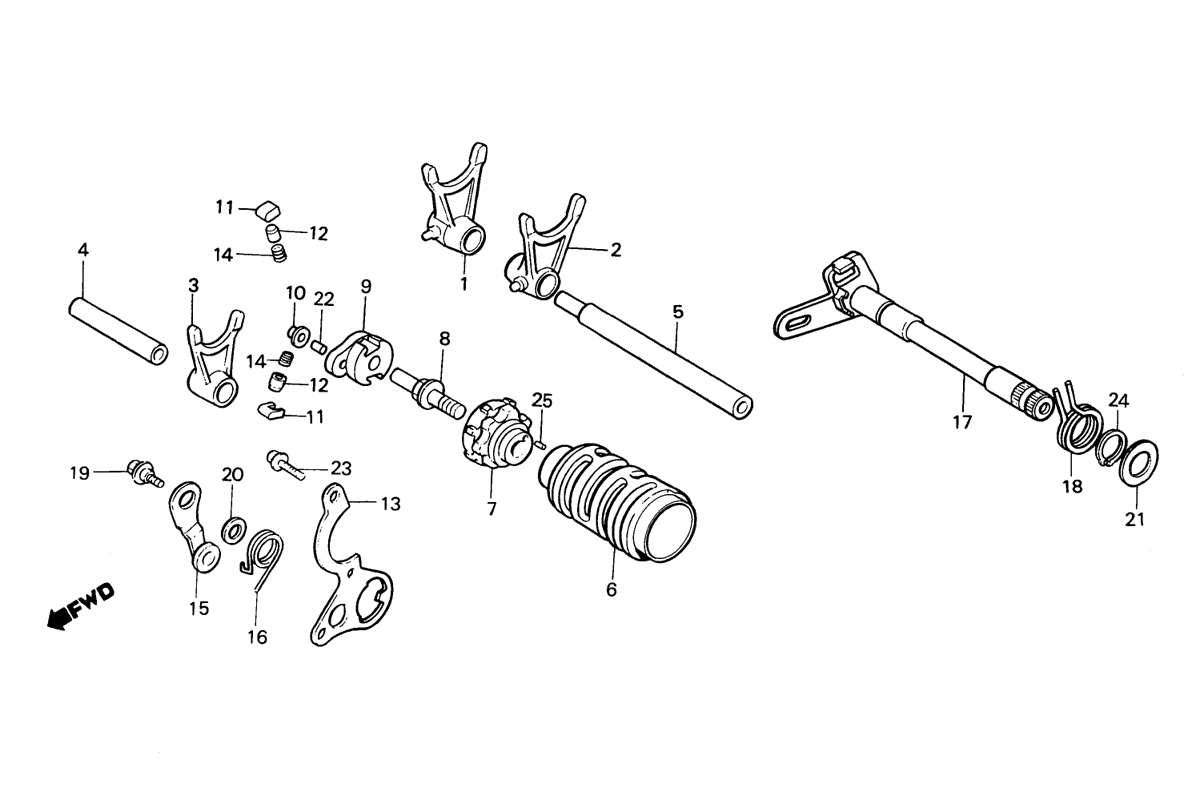

| 1 |
24211-NF4-770 |
FORK R, GEAR SHIFT (se) |
1 |
0.00 |
|
| 2 |
24221-NF4-770 |
FORK L,GEAR SHIFT (se) |
1 |
0.00 |
|
| 3 |
24231-NF4-770 |
FORK C, GEAR SHIFT (se) |
1 |
0.00 |
|
| 4 |
24265-KA3-760 |
SHAFT M, SHIFT FORK |
1 |
13.75 |
|
| 5 |
24266-KA3-760 |
SHAFT,SHIFT FORK |
1 |
34.80 |
|
| 6 |
24311-NF4-760 |
DRUM, GEAR SHIFT (se) |
1 |
0.00 |
|
| 7 |
24312-KA3-741 |
CENTER, SHIFT DRUM |
1 |
33.75 |
|
| 8 |
24315-KA3-710 |
PIN, SHIFTER (se) |
1 |
0.00 |
|
| 9 |
24320-KS6-700 |
SHIFTER COMP, DRUM |
1 |
34.20 |
|
| 10 |
24322-HA0-000 |
COLLAR, SHIFTER |
1 |
4.35 |
|
| 11 |
24324-KA3-740 |
PAWL, RATCHET (se) |
2 |
21.50 |
|
| 12 |
24326-360-000 |
PLUNGER, PAWL [USE 24326-360-010] |
2 |
4.95 |
|
| 13 |
24328-KS6-700 |
PLATE.,GUIDE |
1 |
10.45 |
|
| 14 |
24329-KA3-740 |
SPRING, PAWL PLUNGER |
2 |
1.90 |
|
| 15 |
24430-KA3-740 |
ARM, SHIFT DRUM STOPPER |
1 |
12.40 |
|
| 16 |
24435-NF4-760 |
SPRING, SHIFT DRUM STOPPER |
1 |
2.45 |
|
| 17 |
24610-KS6-700 |
SPINDLE COMP.,GEAR |
1 |
57.85 |
|
| 18 |
24651-KV3-000 |
SPRING, SHIFT RETURN |
1 |
4.75 |
|
| 19 |
90022-MG8-000 |
PIVOT, SHIFT DRUM STOPPER ARM |
1 |
3.00 |
|
| 20 |
90435-HB3-000 |
WASHER (6.1mm) |
1 |
2.30 |
|
| 21 |
90428-958-000 |
WASHER B, THRUST (14mm) |
1 |
3.40 |
|
| 22 |
91021-KA3-741 |
ROLLER (6x9.5) (se) |
1 |
0.00 |
|
| 23 |
93300-06016-0A |
BOLT, HEX HEAD (6x16) |
3 |
0.45 |
|
| 24 |
94510-14000 |
CIRCLIP, EXTERNAL (14mm) |
1 |
0.45 |
|
| 25 |
96220-40080 |
ROLLER (4x8) |
1 |
0.25 |
|
