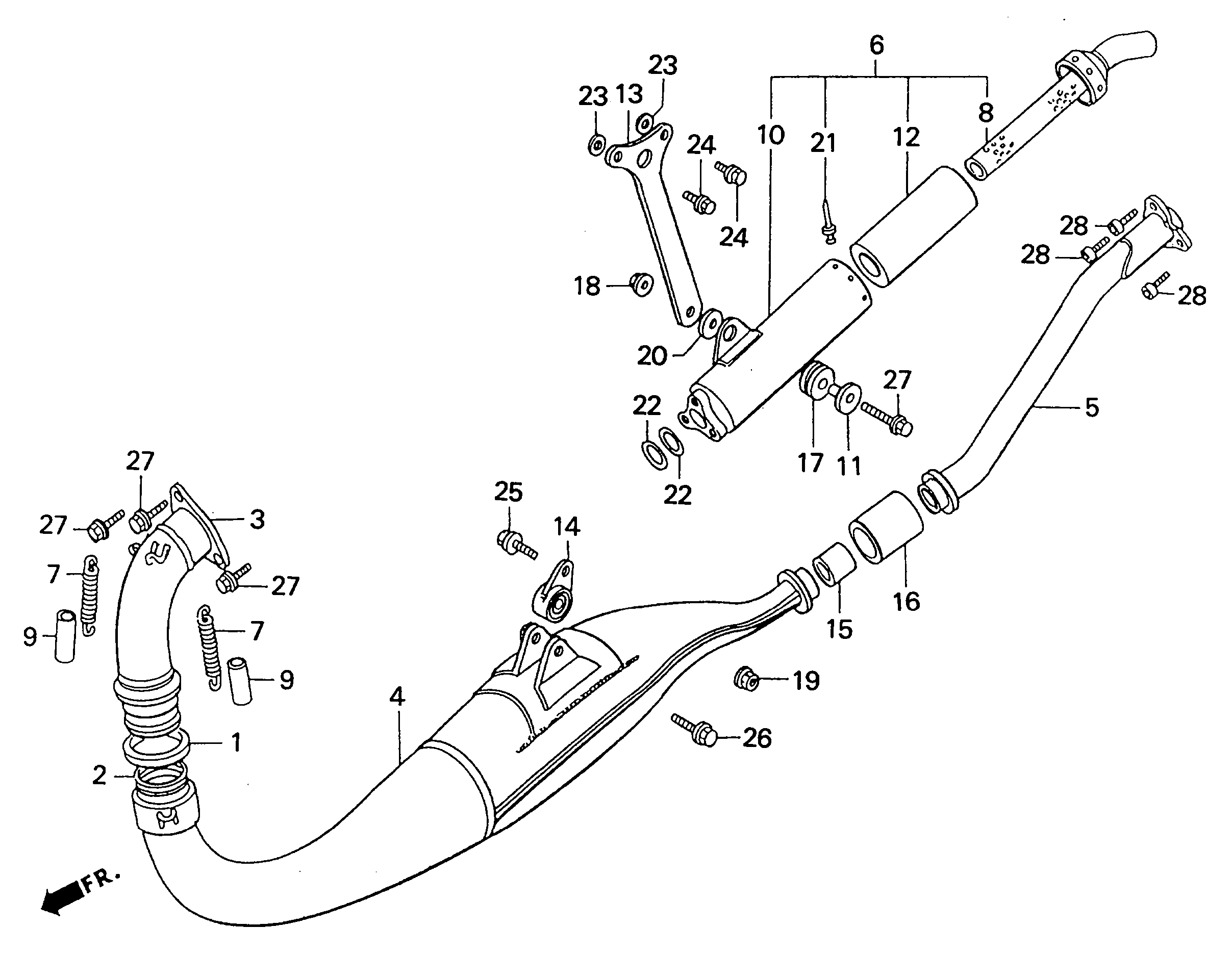

| 1 |
18305-NF4-780 |
SPACER, CHAMBER JOINT (se) |
1 |
0.00 |
|
| 2 |
18306-NF4-780 |
SEAL, EXHAUST JOINT (se) [USE 18359-KA5-690] |
1 |
9.50 |
|
| 3 |
18307-NF4-780 |
JOINT COMP, EXPANSION CHAMBER (se) |
1 |
0.00 |
|
| 4 |
18310-NF4-780 |
JOINT CHAMBER., EXPANSION (se) |
1 |
0.00 |
|
| 5 |
18325-NF4-780 |
JOINT COMP, SILENCER (se) |
1 |
0.00 |
|
| 6 |
18330-NF4-771 |
SILENCER ASSY. (se) |
1 |
0.00 |
|
| 7 |
18332-KS6-000 |
SPRING, EXHAUST PIPE |
2 |
7.60 |
|
| 8 |
18332-NF5-760 |
INNER COMP SLNCR L (se) |
1 |
0.00 |
|
| 9 |
18333-ND4-760 |
TUBE, TENSIONER SPRING [USE 14539-KCZ-300] |
2 |
3.70 |
|
| 10 |
18333-NF4-770 |
BODY, OUTER COMP. (se) |
1 |
0.00 |
|
| 11 |
18336-KS6-700 |
COLLAR, SILENCER MOUNT |
1 |
5.35 |
|
| 12 |
18336-NF5-761 |
GLASS WOOL, SILENCER (se) |
1 |
0.00 |
|
| 13 |
18355-NF4-770 |
STAY, SILENCER MOUNT (se) [USE 18355-NF4-770R] |
1 |
37.50 |
|
| 14 |
18359-961-000 |
STAY ASSY, MUFFLER |
1 |
42.55 |
|
| 15 |
18360-NF4-000 |
PIPE, CHAMBER JOINT (se) [USE 18360-NF4-000R] |
1 |
18.70 |
|
| 16 |
18361-NF4-770 |
SEAL, CHAMBER JOINT (se) [USE 18361-NF4-770R] |
1 |
27.95 |
|
| 17 |
61103-430-000 |
RUBBER, FENDER MOUNT |
1 |
3.30 |
|
| 18 |
90301-473-003 |
U-NUT (6mm) |
1 |
4.15 |
|
| 19 |
90309-428-731 |
NUT, FLANGE LOCK (8mm) |
1 |
3.35 |
|
| 20 |
90506-430-000 |
WASHER, FENDER MOUNT |
1 |
2.45 |
|
| 21 |
91081-NF4-003 |
RIVET BLIND (3.2) (se) |
8 |
0.15 |
|
| 22 |
91301-KR3-003 |
O-RING (25.5x2.5) |
2 |
3.70 |
|
| 23 |
94103-06800 |
WASHER, PLAN (6mm) |
2 |
0.40 |
|
| 24 |
95701-06016-00 |
BOLT, FLANGE (6x16) |
2 |
0.55 |
|
| 25 |
95801-08022-08 |
BOLT, FLANGE (8x22) |
1 |
0.75 |
|
| 26 |
95801-08032-08 |
BOLT, FLANGE (8x32) |
1 |
0.75 |
|
| 27 |
96001-06028-00 |
BOLT, FLANGE SH (6x28) |
4 |
0.65 |
|
| 28 |
96700-06016-17 |
BOLT, SOCKET 6x16 [USE 96600-06016-17] |
3 |
0.60 |
|
