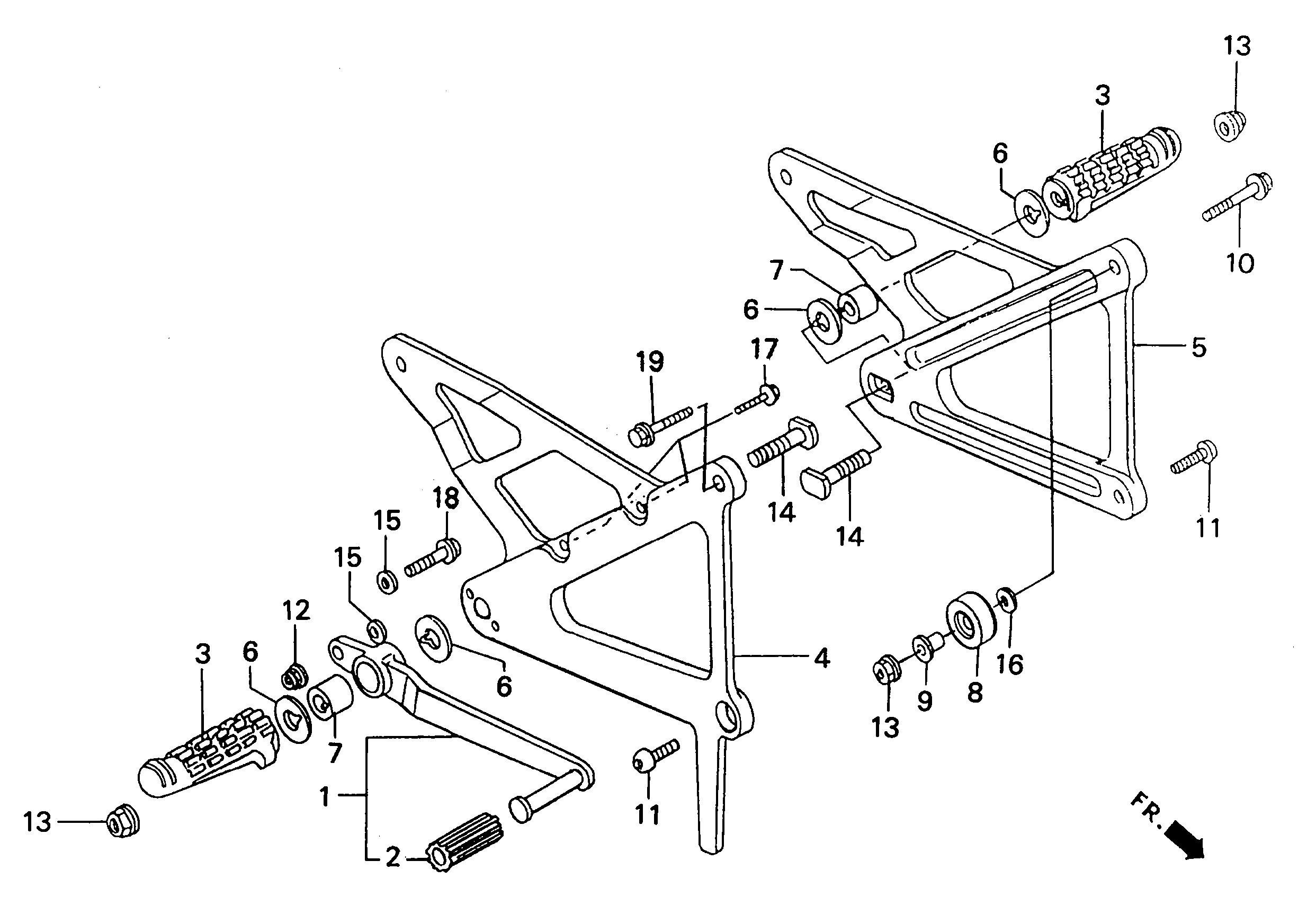

| 1 |
46500-NF4-780 |
PEDAL COMP, REAR BRAKE |
1 |
144.85 |
|
| 2 |
46501-ND4-750 |
RUBBER, PEDAL |
1 |
4.90 |
|
| 3 |
50611-NF4-770 |
ARM,STEP (se) |
2 |
74.60 |
|
| 4 |
50630-NF4-770 |
HOLDER, RIGHT STEP (se) |
1 |
0.00 |
|
| 5 |
50640-NF4-770 |
HOLDER, LEFT STEP (se) |
1 |
80.55 |
|
| 6 |
50642-NF4-770 |
WASHER, SPECIAL (8mm) (se) [USE 50642-NF4-770R] |
4 |
14.65 |
|
| 7 |
50643-NF4-770 |
COLLAR, PEDAL (16X8.2) (se) |
2 |
29.85 |
|
| 8 |
52158-HB5-003 |
ROLLER, DRIVE CHAIN |
1 |
16.95 |
|
| 9 |
52159-467-000 |
COLLAR, CHAIN ROLLER |
1 |
6.45 |
|
| 10 |
90113-HB3-000 |
BOLT, FLANGE 8x62 |
1 |
3.35 |
|
| 11 |
90178-NC8-000 |
BOLT (8x22) (se) |
2 |
0.00 |
|
| 12 |
90301-473-003 |
U-NUT (6mm) |
1 |
4.15 |
|
| 13 |
90309-428-731 |
NUT, FLANGE LOCK (8mm) |
3 |
3.35 |
|
| 14 |
90510-NF4-770 |
BOLT, MAIN STEP |
2 |
3.55 |
|
| 15 |
94101-06000 |
WASHER, PLAIN (6mm) |
2 |
0.40 |
|
| 16 |
94102-08000 |
WASHER, PLAIN (8mm) |
1 |
0.35 |
|
| 17 |
95801-06022-00 |
BOLT, FLANGE (6x22) [USE 95701-06022-00] |
2 |
0.60 |
|
| 18 |
95801-06025-00 |
BOLT, FLANGE (6x25) |
1 |
0.65 |
|
| 19 |
95801-08025-00 |
BOLT, FLANGE (8x25) [USE 95701-08025-00] |
1 |
0.75 |
|
