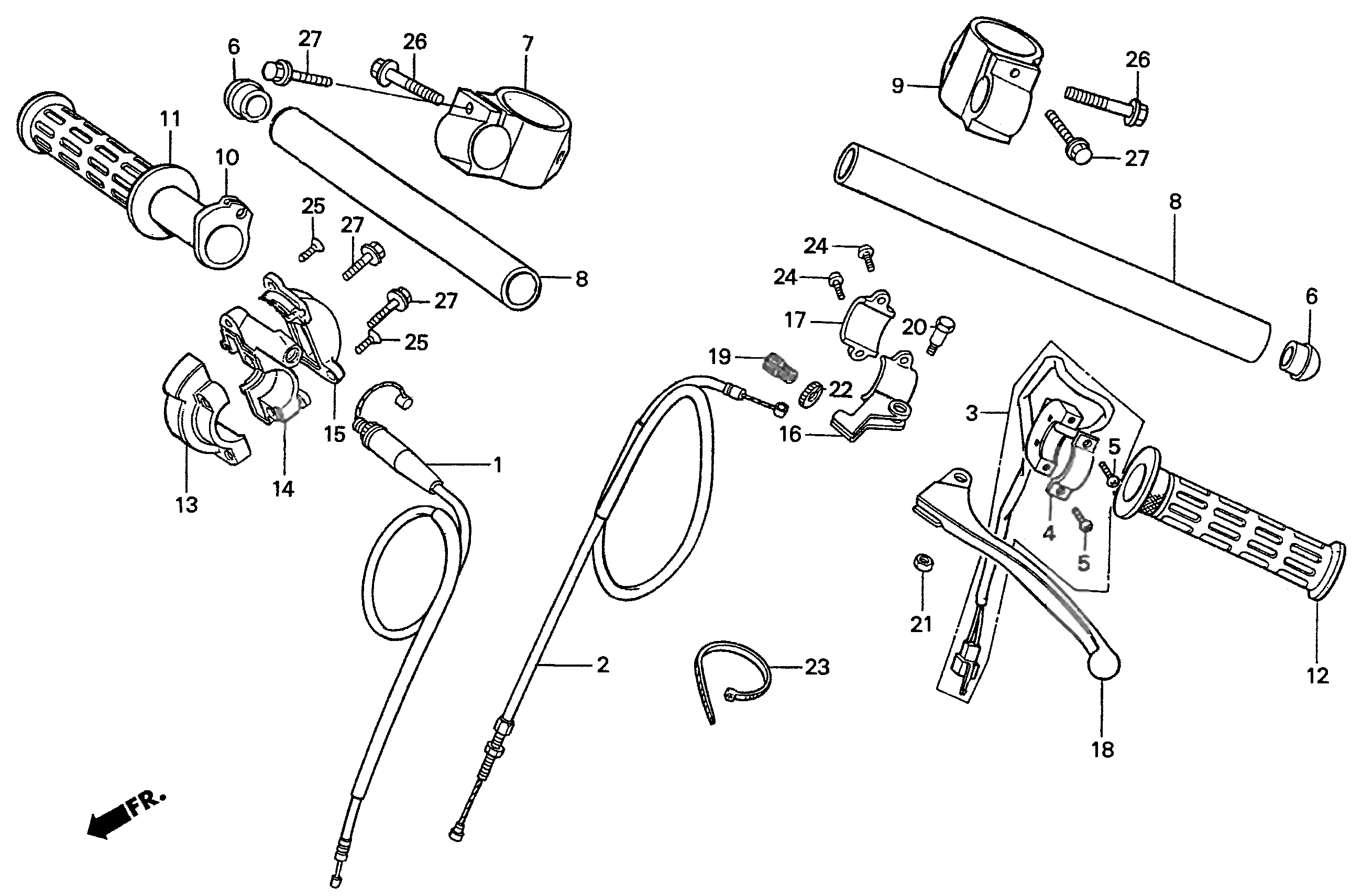

| 1 |
17910-NX4-000 |
CABLE COMP, THROTTLE |
1 |
17.55 |
|
| 2 |
22870-NX4-000 |
CABLE COMP, CLUTCH [USE 22870-NX4-000R] |
1 |
38.85 |
|
| 3 |
35130-NX4-000 |
SWITCH ASSY, ENGINE STOP (se) |
1 |
38.15 |
|
| 4 |
35132-KR5-013 |
PLATE, SET |
1 |
3.05 |
|
| 5 |
35133-KJ2-003 |
SCREW (4x12) |
2 |
1.50 |
|
| 6 |
53105-NF4-770 |
CAP, HANDLE BAR |
2 |
4.40 |
|
| 7 |
53110-NX4-000 |
HOLDER, RIGHT HANDLE |
1 |
88.45 |
|
| 8 |
53111-NX4-000 |
PIPE, HANDLE BAR |
2 |
25.00 |
|
| 9 |
53120-NX4-000 |
HOLDER, LEFT HANDLE |
1 |
88.45 |
|
| 10 |
53141-NF4-003 |
PIPE, THROTTLE GRIP (se) |
1 |
59.50 |
|
| 11 |
53165-422-000 |
GRIP, RIGHT HANDLE |
1 |
12.20 |
|
| 12 |
53166-422-000 |
GRIP, LEFT HANDLE [USE 53166-422-305] |
1 |
15.10 |
|
| 13 |
53167-KS6-000 |
HOUSING A, GRIP |
1 |
25.05 |
|
| 14 |
53168-KS6-000 |
HOUSING B, GRIP |
1 |
25.05 |
|
| 15 |
53169-ML3-790 |
COVER, HOUSING B (se) |
1 |
29.60 |
|
| 16 |
53172-430-003 |
BRACKET, CLUTCH LEVER |
1 |
44.00 |
|
| 17 |
53173-376-000 |
HOLDER, LEVER BRACKET |
1 |
10.90 |
|
| 18 |
53178-399-700 |
LEVER, CLUTCH |
1 |
24.90 |
|
| 19 |
53192-KA3-700 |
BOLT, CLUTCH CABLE ADJUSTING |
1 |
8.50 |
|
| 20 |
90114-310-000 |
BOLT, CLUTCH LEVER PIVOT |
1 |
4.70 |
|
| 21 |
90302-NX5-000 |
U-NUT, HEX (6mm) |
1 |
1.30 |
|
| 22 |
90321-KF0-000 |
NUT, LOCKING |
1 |
8.65 |
|
| 23 |
90651-NC8-000 |
TY-WRAP (3.6x281) |
1 |
1.70 |
|
| 24 |
93500-05016-0A |
SCREW, PAN HEAD (5x16) |
2 |
0.35 |
|
| 25 |
93700-04010-0G |
SCREW, OVAL (4x10) |
2 |
0.40 |
|
| 26 |
95801-08030-00 |
BOLT, FLANGE 8x30 |
2 |
0.75 |
|
| 27 |
96001-06022-00 |
BOLT, FLANGE SH (6x22) |
4 |
0.80 |
|
