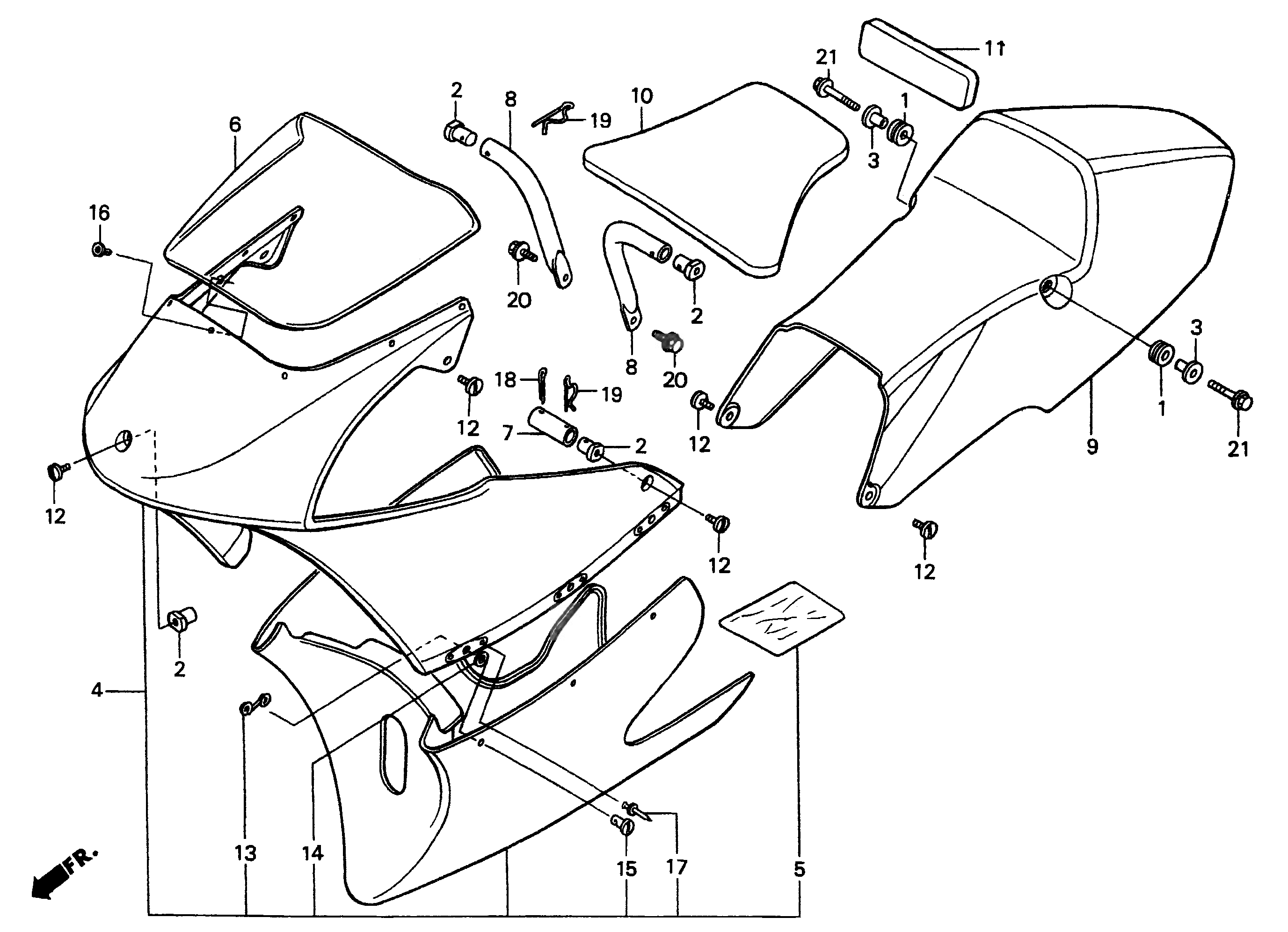

| 1 |
33712-KC5-003 |
GROMMET, TAIL LIGHT MOUNT |
2 |
2.95 |
|
| 2 |
50803-NF4-610 |
NUT, COWL STAY |
5 |
5.05 |
|
| 3 |
61104-KA4-700 |
COLLAR, FENDER MOUNT |
2 |
4.15 |
|
| 4 |
64100-NX4-770 |
COWLING,FR (se) |
1 |
0.00 |
|
| 5 |
64109-NF5-750 |
SHEET, HEAT PROOF |
1 |
9.65 |
|
| 6 |
64200-NX4-770 |
SCREEN (se) |
1 |
0.00 |
|
| 7 |
64210-NX4-000 |
STAY, FRONT COWL SIDE |
2 |
8.35 |
|
| 8 |
64240-NX4-000 |
STAY, FRONT COWL TOP (1995-1999) (se) [USE 64240-NX4-000R] |
2 |
25.30 |
|
| 9 |
77210-NX4-770 |
COWL,SEAT (se) |
1 |
0.00 |
|
| 10 |
77220-NX4-000 |
RUBBER, SEAT |
1 |
15.25 |
|
| 11 |
77221-NF5-760 |
RUBBER, SEAT BACK |
1 |
8.85 |
|
| 12 |
90106-NF4-770 |
BOLT, COWL SET (6x13) |
7 |
3.60 |
|
| 13 |
90653-NC8-000 |
SPRING, FASTENER 35 |
6 |
3.35 |
|
| 14 |
90654-NC8-000 |
GROMMET, FASTENER |
6 |
0.90 |
|
| 15 |
90655-NC8-000 |
STUD, FASTENER 35 |
6 |
7.10 |
|
| 16 |
90656-NX4-000 |
RIVET (4x7) |
7 |
0.60 |
|
| 17 |
91080-NC8-300 |
RIVET (3.2x6.4) |
12 |
0.30 |
|
| 18 |
94201-25300 |
PIN, SPLIT (2.5mm) |
2 |
0.40 |
|
| 19 |
94252-16100 |
PIN, LOCK (16mm) |
4 |
0.80 |
|
| 20 |
95801-06014-00 |
BOLT, FLANGE, 6x14 [USE 95701-06014-00] |
2 |
0.55 |
|
| 21 |
96001-06020-00 |
BOLT, FLANGE (6x20) |
2 |
0.50 |
|
