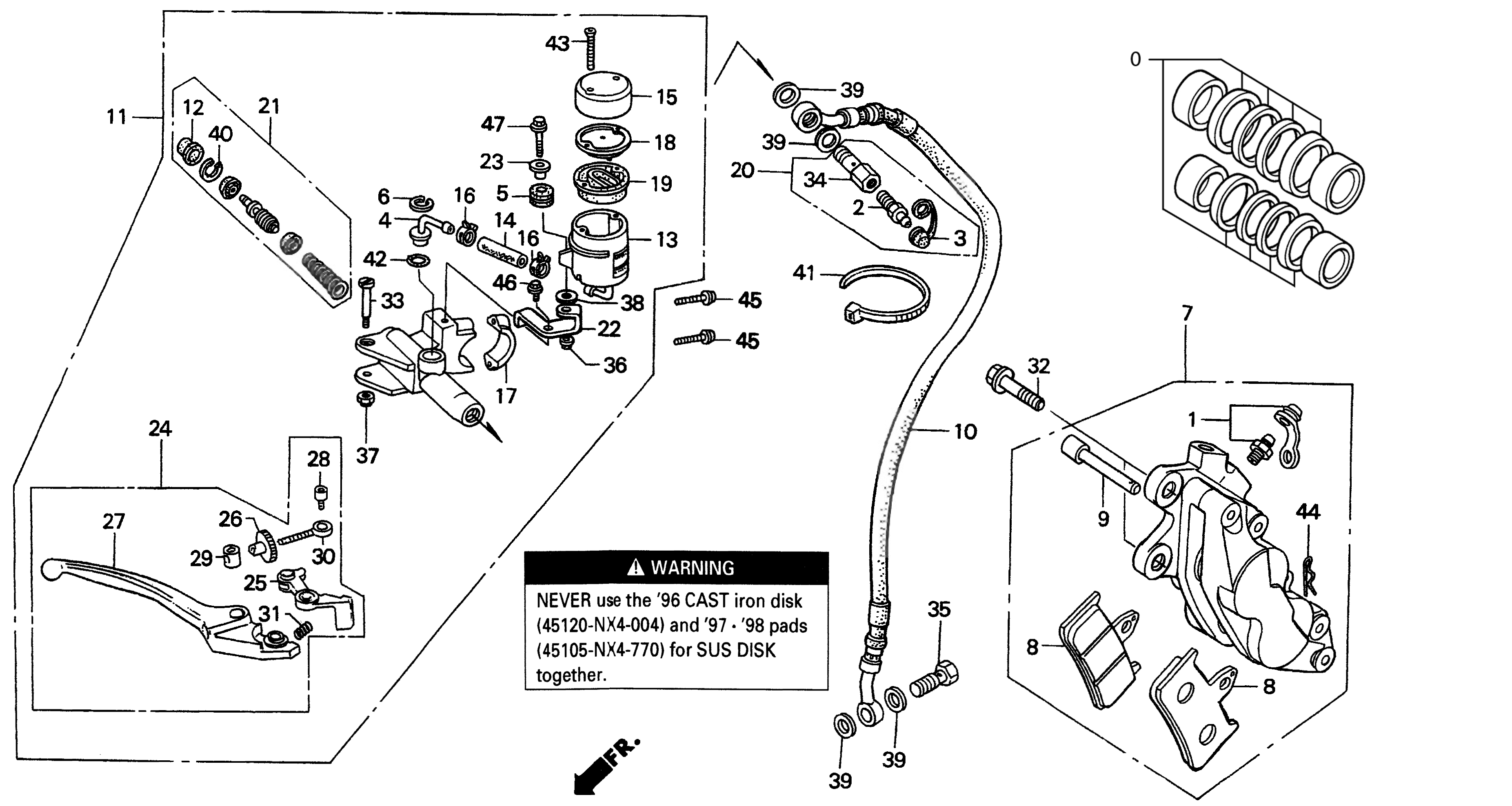

| 0 |
06451-NX4-003 |
SEAL SET, BRAKE CALIPER |
1 |
32.05 |
|
| 1 |
43352-NX5-004 |
BLEEDER COMP |
1 |
4.95 |
|
| 2 |
43352-568-003 |
SCREW, BLEEDER |
1 |
3.45 |
|
| 3 |
43353-461-771 |
CAP, BLEEDER |
1 |
2.80 |
|
| 4 |
43503-KS6-701 |
FITTING, CONNECTOR |
1 |
6.55 |
|
| 5 |
43516-HA2-000 |
RUBBER, OIL CUP MOUNT |
1 |
2.65 |
|
| 6 |
43517-KS6-701 |
CIRCLIP, REAR MASTER CYLINDER |
1 |
2.45 |
|
| 7 |
45100-NX4-770 |
CALIPER ASSY, RIGHT FRONT (se) |
1 |
0.00 |
|
| 8 |
45105-NX4-770 |
PAD COMP, FRONT BRAKE (se) |
2 |
49.25 |
|
| 9 |
45109-NX5-004 |
PIN, BRAKE PAD HANGER (se) |
1 |
22.90 |
|
| 10 |
45125-NX4-003 |
HOSE, FRONT BRAKE (se) |
1 |
51.85 |
|
| 11 |
45500-NX4-003 |
MASTER CYLINDER ASSY, FRONT BRAKE [USE 45500-NX4-861] |
1 |
167.75 |
|
| 12 |
45504-410-003 |
BOOT COMP, DUST |
1 |
6.80 |
|
| 13 |
45511-KV3-016 |
OIL CUP COMP |
1 |
23.80 |
|
| 14 |
45512-MR7-006 |
HOSE, MASTER CYLINDER OIL CUP (6x9x173) [USE 45512-NX4-861] |
1 |
4.75 |
|
| 15 |
45513-KV3-006 |
CAP, MASTER CYLINDER OIL CUP |
1 |
20.10 |
|
| 16 |
45514-KV3-006 |
CLAMP, MASTER CYLINDER OIL HOSE |
2 |
8.30 |
|
| 17 |
45517-166-006 |
HOLDER, FRONT MASTER CYLINDER |
1 |
10.45 |
|
| 18 |
45518-KV3-006 |
PLATE, DIAPHRAGM |
1 |
8.70 |
|
| 19 |
45520-KV3-006 |
DIAPHRAGM |
1 |
9.30 |
|
| 20 |
45530-NF4-650 |
BOLT ASSY, OIL BLEEDER |
1 |
16.50 |
|
| 21 |
45530-471-831 |
CYLINDER SET, MASTER |
1 |
31.45 |
|
| 22 |
45550-NX4-003 |
STAY, FRONT M/C CUP (se) [USE 45550-NX4 -861 & 45512-NX4-861] |
1 |
40.10 |
|
| 23 |
50324-425-010 |
COLLAR (6.3x13) |
1 |
3.05 |
|
| 24 |
53170-MW0-006 |
LEVER, FRONT BRAKE |
1 |
37.55 |
|
| 25 |
53171-MW0-006 |
KNOCKER,M/C |
1 |
10.15 |
|
| 26 |
53172-KV0-006 |
ADJUSTER, RIGHT HANDLE LEVER |
1 |
5.80 |
|
| 27 |
53175-MW0-006 |
LEVER COMP, FRONT BRAKE |
1 |
19.25 |
|
| 28 |
53177-KV0-006 |
BOLT, LEVER SOCKET (5x5) |
1 |
3.00 |
|
| 29 |
53179-KV0-006 |
JOINT, LEVER |
1 |
2.40 |
|
| 30 |
53180-KV0-006 |
BOLT, ADJUSTING |
1 |
4.40 |
|
| 31 |
53181-KV0-006 |
SPRING, HANDLE LEVER |
1 |
2.25 |
|
| 32 |
90111-NX4-000 |
BOLT, FLANGE (10x31) (se) [USE 95801-10032-00] |
2 |
18.30 |
|
| 33 |
90114-MA5-671 |
BOLT, HANDLE LEVER |
1 |
5.40 |
|
| 34 |
90145-NF4-650 |
BOLT, OIL BLEEDER |
1 |
12.70 |
|
| 35 |
90145-NX5-004 |
OIL BOLT,10X19 [USE 90145-NX4-710] |
1 |
9.90 |
|
| 36 |
90301-MG3-000 |
U-NUT, 6mm |
1 |
3.60 |
|
| 37 |
90302-NX5-000 |
U-NUT, HEX (6mm) |
1 |
1.30 |
|
| 38 |
90473-147-000 |
WASHER 6x16 |
1 |
1.86 |
|
| 39 |
90601-ZE1-000 |
WASHER, DRAIN PLUG (10mm) |
4 |
0.80 |
|
| 40 |
90651-MA5-671 |
CIRCLIP |
1 |
2.40 |
|
| 41 |
90652-ND5-000 |
TY-WRAP (2.4x92) |
1 |
0.85 |
|
| 42 |
91212-422-006 |
O-RING (14.8x2.4) |
1 |
2.35 |
|
| 43 |
93600-04050-1G |
SCREW, FLAT HEAD (4x50) |
2 |
0.45 |
|
| 44 |
94251-05000 |
PIN, LOCK (5mm) |
1 |
0.45 |
|
| 45 |
95801-06025-00 |
BOLT, FLANGE (6x25) |
2 |
0.65 |
|
| 46 |
96300-06012-07 |
BOLT, FLANGE (6x12) |
1 |
0.65 |
|
| 47 |
96300-06028-07 |
BOLT, FLANGE DR 6x28 |
1 |
0.75 |
|
