2002 Honda RS125R - F11 Footpeg / Brake Pedal

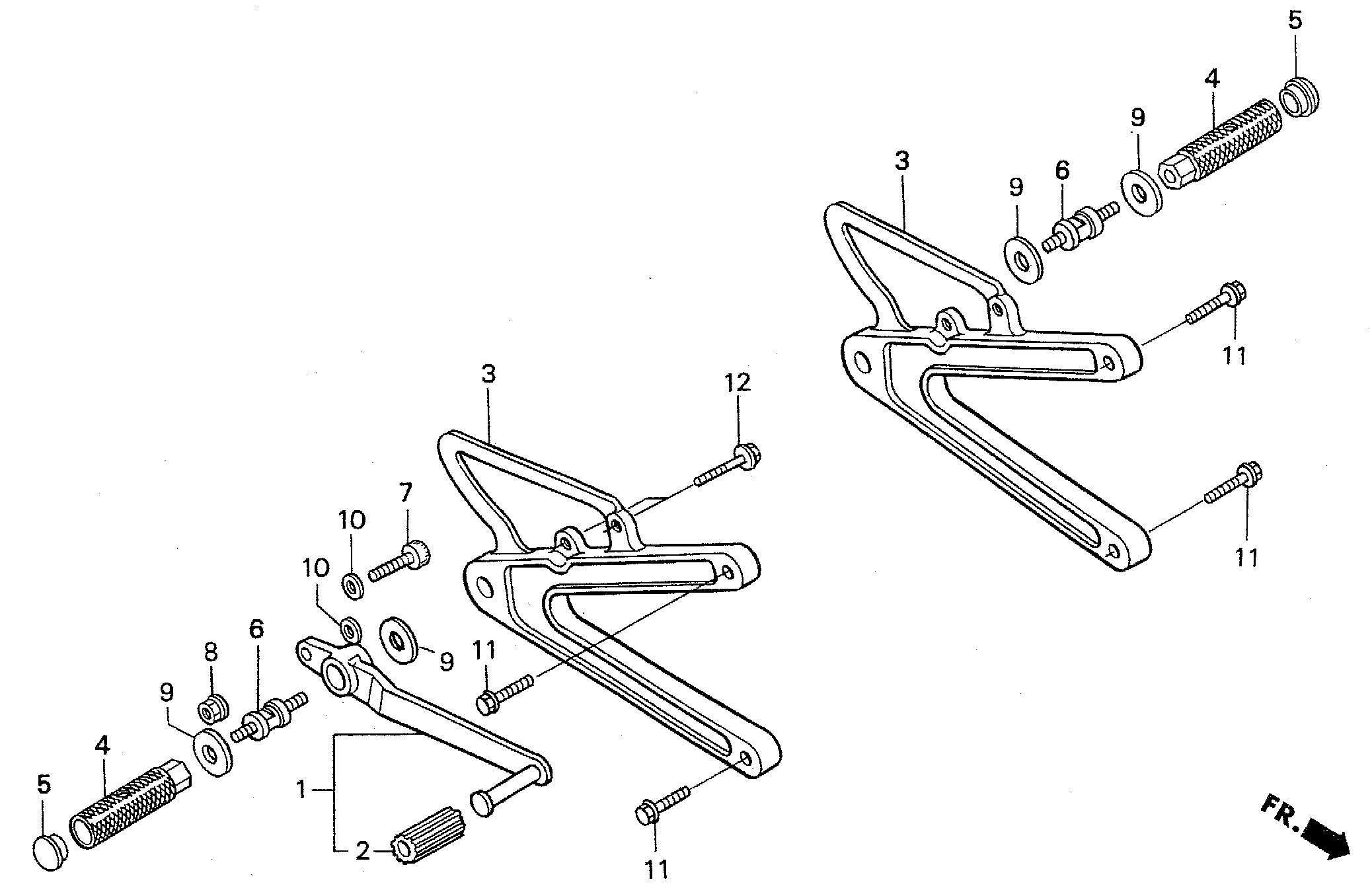

2002 Honda RS125R - F11 Footpeg / Brake Pedal Image

This image is the property and copyright of Honda Racing Corporation.


Ref Part Number Description Qty Req Qty 1 Price Buy
1 46500-NF4-780 PEDAL COMP, REAR BRAKE 1 144.85
2 46501-ND4-750 RUBBER, PEDAL 1 4.90
3 50600-NX4-000 HOLDER, FOOT PEG 2 84.00
4 50610-NL5-760 ARM, STEP 2 20.95
5 50612-NL5-760 END, STEP ARM 2 7.25
6 50643-NX4-770 BOSS, PEDAL PIVOT 2 22.30
7 90211-NX4-771 BOLT, SOCKET (6x25) 1 2.70
8 90301-473-003 U-NUT (6mm) 1 4.15
9 90504-MA6-000 WASHER (8.5x26) 4 2.10
10 94101-06000 WASHER, PLAIN (6mm) 2 0.40
11 95701-08030-00 BOLT, FLANGE (8x30) 4 0.65
12 95701-06022-00 BOLT, FLANGE (6x22) 2 0.65
