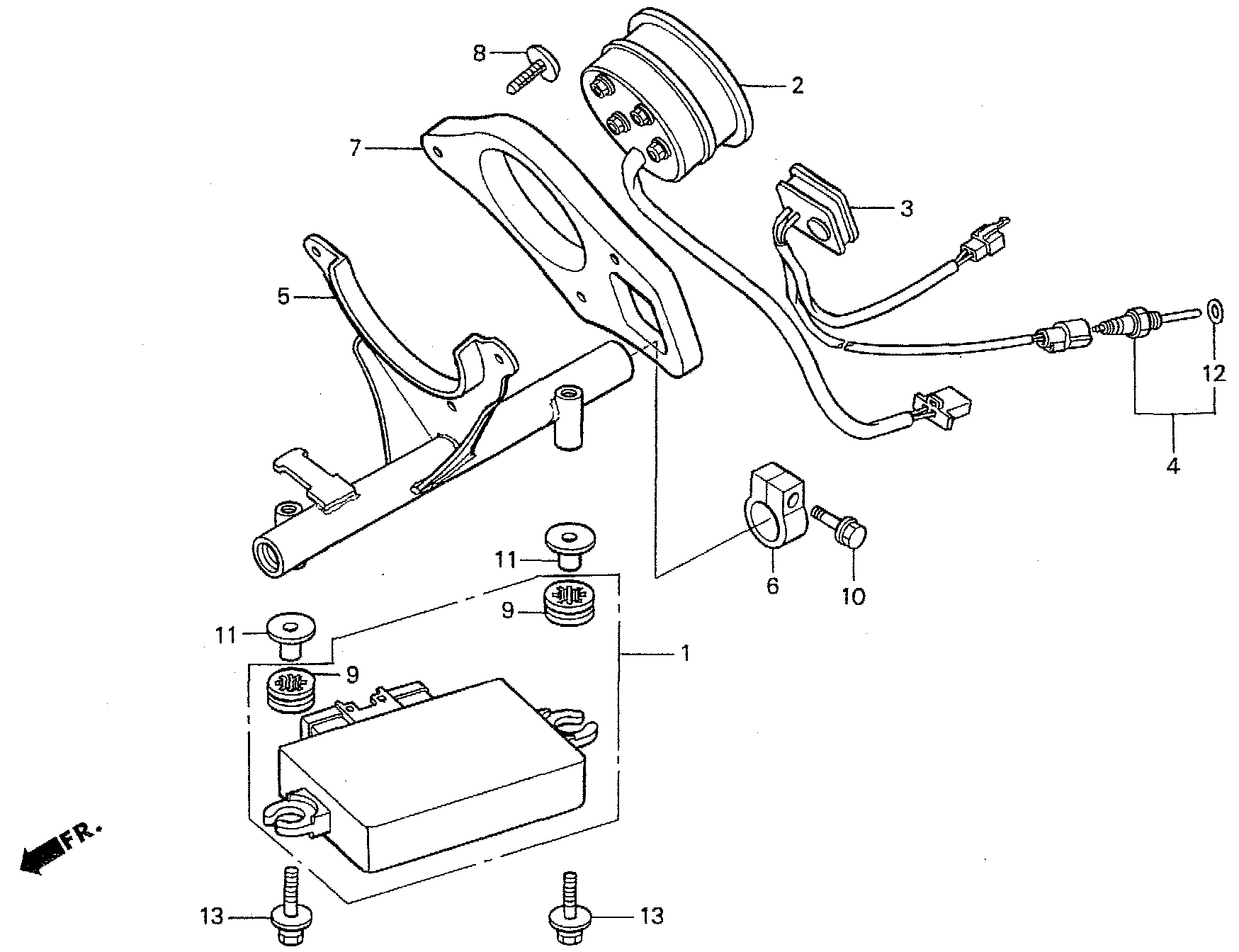

| 1 |
30400-NX4-711 |
UNIT ASSY, ENGINE CONTROL (se) |
1 |
853.80 |
|
| 2 |
37250-NF4-771 |
METER ASSY, TACHOMETER [USE 37250-NX4-731] |
1 |
478.50 |
|
|
37250-NX4-731 |
METER ASSY, TACHOMETER (se) |
(1) |
478.50 |
|
| 3 |
37460-NX4-701 |
METER ASSY, WATER TEMPERATURE (se) |
1 |
457.85 |
|
| 4 |
37870-NF4-611 |
SENSOR ASSY, WATER TEMPERATURE |
1 |
18.30 |
|
| 5 |
50810-NX4-680 |
STAY COMP, CENTER FRONT UPPER COWL (se) |
1 |
188.60 |
|
| 6 |
50811-NX4-680 |
CLAMP, COWL CENTER STAY (D=25.4) [USE 50811-NX7-000] |
1 |
41.20 |
|
| 7 |
50815-NX4-000 |
PANEL, METER [USE 50819-NX7-000] |
1 |
6.10 |
|
| 8 |
50816-NX4-000 |
CLIP, CHRISTMAS TREE |
3 |
0.30 |
|
| 9 |
80116-MR1-000 |
RUBBER B, R.COWL MOUNTING |
2 |
2.30 |
|
| 10 |
90004-GHB-670 |
BOLT, FLANGE (6x25) |
1 |
1.70 |
|
| 11 |
90502-KS5-000 |
COLLAR (19x6.2x13.5) |
2 |
3.25 |
|
| 12 |
91307-PK2-005 |
O-RING (9.5x1.5) [USE 91306-MG3-000] |
1 |
2.15 |
|
| 13 |
93404-06028-00 |
BOLT-WASHER (6x28) |
2 |
0.65 |
|
