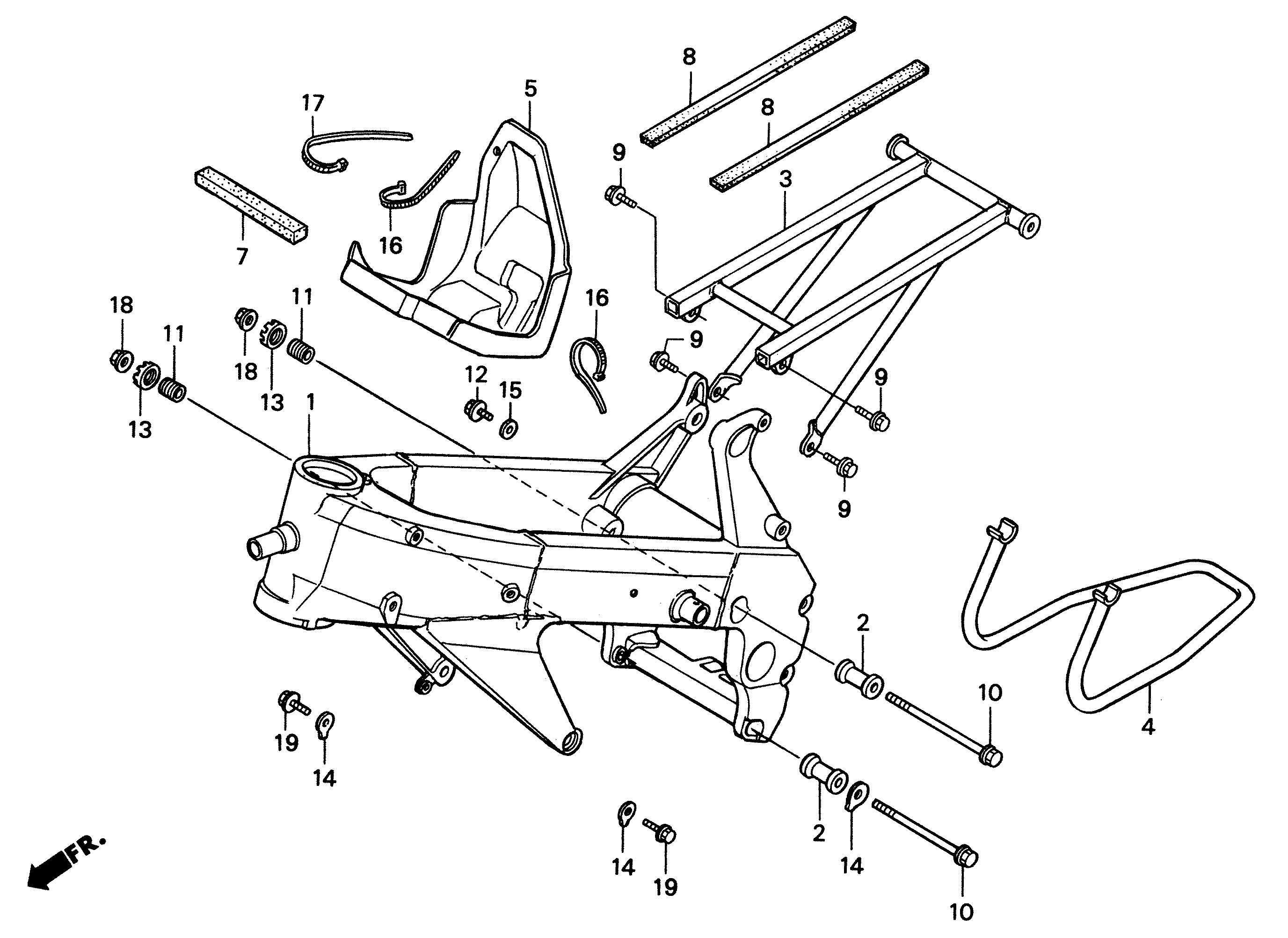

| 1 |
50100-NX4-710 |
FRAME BODY COMP (se) |
1 |
0.00 |
|
| 2 |
50180-NX4-000 |
COLLAR, ENGINE MOUNT |
2 |
2.85 |
|
| 3 |
50240-NX4-000 |
RAIL COMP, SEAT |
1 |
128.10 |
|
| 4 |
50500-NX4-000 |
50500-NX4-000 (se) |
1 |
0.00 |
|
| 6 |
64110-NX4-860 |
BOX, CARBURETOR (se) |
1 |
0.00 |
|
| 7 |
64231-MZ7-300 |
SEAL, HEAD LIGHT LOWER |
1 |
6.80 |
|
| 8 |
77105-NX4-000 |
RUBBER, SEAT RAIL (6x20x210) |
2 |
2.10 |
|
| 9 |
90004-GHB-620 |
BOLT, FLANGE NSHF (6x14) |
4 |
1.70 |
|
| 10 |
90102-GW2-000 |
BOLT, FLANGE (10x183) |
2 |
7.75 |
|
| 11 |
90124-NX4-000 |
BOLT, ENGINE MOUNT ADJUSTING (18x34.5) |
2 |
10.00 |
|
| 12 |
90134-ND5-000 |
BOLT, FLUID CHECK (6x10 SAFETY WIRE HOLES) [USE 90037-NX5-053] |
1 |
5.85 |
|
| 13 |
90301-NX4-000 |
NUT, LOCK (18x1.4) |
2 |
7.45 |
|
| 14 |
90510-NX4-000 |
SHIM, ENGINE MOUNT (0.2mm) |
N |
7.20 |
|
|
90511-NX4-000 |
SHIM, ENGINE MOUNT (0.6mm) |
N |
7.20 |
|
|
90512-NX4-000 |
SHIM, ENGINE MOUNT (1.0mm) |
N |
7.20 |
|
|
90513-NX4-000 |
SHIM, ENGINE MOUNT (1.5mm) |
N |
7.30 |
|
| 15 |
90543-273-000 |
PACKING, FRONT FORK DRAIN |
1 |
1.70 |
|
| 16 |
90651-NC8-000 |
TY-WRAP (3.6x281) |
2 |
1.70 |
|
| 17 |
91058-MG9-681 |
BAND, SELF-LOCK (4.5x185) |
1 |
2.15 |
|
| 18 |
94050-10000 |
NUT, FLANGE (10mm) |
2 |
0.80 |
|
| 19 |
95701-10028-00 |
BOLT, FLANGE (10x28) |
2 |
0.85 |
|
