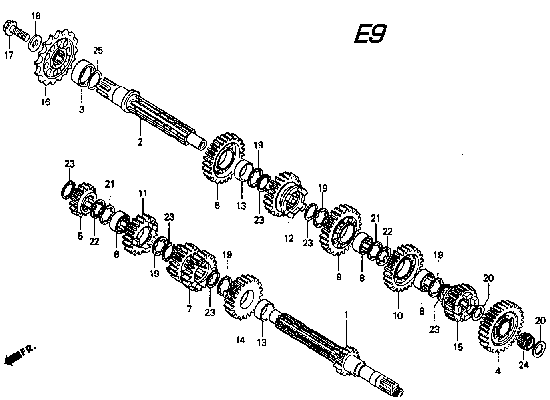

1995 Honda RS250R - E9 Transmission

Transmission Parts for a 1995 Honda RS250 Technical Sports One, LLC

This image is the property and copyright of Honda Racing Corporation.


Ref Part Number Description Qty Req Qty 1 Price Buy
1 23211-NXA-000 SHAFT COMP, MAIN PLAN-1 (15T) (1) 141.80
23212-NX5-000 SHAFT COMP, MAIN PLAN-2 (14T) 1 130.90
23214-NXA-000 SHAFT COMP, MAIN PLAN-4 (16T) (1) 183.25
2 23221-NX5-000 SHAFT, TRANSMISSION COUNTER (se) 1 394.10
3 23225-NX5-000 COLLAR, COUNTERSHAFT (se) 1 0.00
4 23411-NX5-000 GEAR, C-1ST PLAN-1 (35T) (1) 150.95
23412-NX5-000 GEAR, C-1ST PLAN-2 (31T) 1 139.35
23413-NX5-000 GEAR, C-1ST PLAN-3 (30T) (1) 139.35
23414-NX5-000 GEAR, C-1ST PLAN-4 (33T) (1) 139.35
5 23421-NX5-000 GEAR, M-2ND PLAN-1 (17T) (1) 73.20
23422-NX5-000 GEAR, M-2ND PLAN-2 (16T) 1 79.30
23424-NX5-000 GEAR, M-2ND PLAN-4 (18T) (1) 73.20
6 23431-NX5-000 GEAR, C-2ND PLAN-1 (32T) (1) 150.95
23432-NX5-000 GEAR, C-2ND PLAN-2 (29T) (1) 139.35
23433-NX5-000 GEAR, C-2ND PLAN-3 (28T) (se) 1 0.00
23434-NX5-000 GEAR, C-2ND PLAN-4 (31T) (1) 150.95
7 23441-NX5-000 GEAR, M-3RD/4TH PLAN-1 (17T/19T) (1) 181.60
23442-NX5-000 GEAR, M-3RD/4TH PLAN-2 (17T/21T) (1) 181.60
23443-NX5-000 GEAR, M-3RD/4TH PLAN-3 (17T/24T) (1) 181.60
23444-NX5-000 GEAR, M-3RD/4TH PLAN-4 (18T/21T) (1) 181.60
23445-NX5-000 GEAR, M-3RD/4TH PLAN-5 (18T/24T) (se) 1 0.00
23446-NX5-000 GEAR, M-3RD/4TH PLAN-6 (18T/20T) (1) 181.60
8 23512-KV3-770 COLLAR, SPLINE (25x10.6) (se) 3 31.00
9 23461-NX5-000 GEAR, C-3RD PLAN-1 (27T) (1) 149.45
23462-NX5-000 GEAR, C-3RD PLAN-2 (27T) (se) 1 0.00
23463-NX5-000 GEAR, C-3RD PLAN-3 (26T) (1) 137.95
10 23471-NX5-000 GEAR, C-4TH PLAN-1 (26T) (1) 149.45
23472-NX5-000 GEAR, C-4TH PLAN-2 (28T) (1) 149.45
23473-NX5-000 GEAR, C-4TH PLAN-3 (31T) (se) 1 0.00
23474-NX5-000 GEAR, C-4TH PLAN-4 (25T) (1) 137.95
11 23481-NX5-000 GEAR, M-5TH PLAN-1 (22T) (se) (1) 0.00
23503-NX5-000 GEAR, M-6TH PLAN-3 (21T) 1 114.35
12 23491-NX5-000 GEAR, C-5TH PLAN-1 (27T) (1) 140.75
23511-NX5-000 GEAR, C-5TH PLAN 2 / C-6TH PLAN-1 (24T) (se) 1 0.00
13 23495-NXA-000 COLLAR, SPLINE (25x28x10.5) (se) 2 0.00
14 23501-NX5-000 GEAR, M-6TH PLAN -1 (20T) (1) 105.60
23502-NX5-000 GEAR, M-6TH PLAN-2 (23T) (1) 105.60
23503-NX5-000 GEAR, M-6TH PLAN-3 (21T) (1) 114.35
23504-NX5-000 GEAR, M-6TH PLAN-4 (26T) (1) 105.60
23505-NX5-000 GEAR, M-6TH PLAN-5 (24T) (1) 105.60
23506-NX5-000 GEAR, M-6TH PLAN-6 (22T) 1 114.35
15 23511-NX5-000 GEAR, C-5TH PLAN 2 / C-6TH PLAN-1 (24T) (se) (1) 0.00
23512-NX5-000 GEAR, C-6TH PLAN-2 (27T) (1) 140.75
23514-NX5-000 GEAR, C-6TH PLAN-4 (29T) (1) 140.75
23515-NX5-000 GEAR, C-6TH PLAN-5 (26T) (1) 140.75
23516-NX5-000 GEAR, C-6TH PLAN-6 (23T) (se) 1 0.00
16 23802-NX5-770 SPROCKET, DRIVE (15T) (se) (1) 0.00
23803-NX5-700 SPRKT,DRIVE 16T 1 53.50
23804-NX5-770 SPROCKET, DRIVE 17T (1) 68.30
23805-NX5-700 SPROCKET, DRIVE 18T (se) (1) 0.00
17 90005-NX5-000 BOLT, FLANGE (12x30) 1 6.10
18 90402-PC6-000 WASHER (12.5x34x5) 1 6.75
19 90451-KE8-000 WASHER, SPLINE (25mm) 5 3.20
20 90454-428-000 WASHER, THRUST (20x10) 2 2.80
21 90461-286-000 WASHER, B THRUST (25mm T=1.6) 2 4.10
22 90462-323-000 WASHER, LOCK (25mm T=2.0) 2 3.15
23 90601-107-000 CIRCLIP, 25MM 6 2.50
24 91026-MN0-003 BEARING, NEEDLE (20x24x11) 1 9.60
25 91201-ML3-873 D-RING (23.75) 1 2.50
