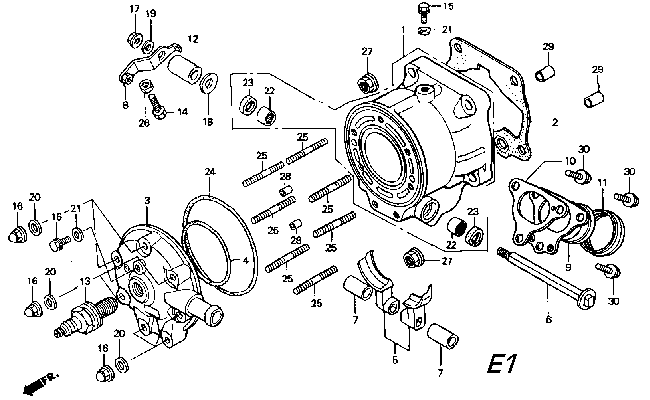

| 1 |
12101-NX5-710 |
CYLINDER COMP, A (se) |
1 |
0.00 |
|
|
12102-NX5-710 |
CYLINDER COMP, B (se) |
1 |
0.00 |
|
| 2 |
12194-NX5-701 |
GASKET, CYLINDER (0.4T) (se) |
(1) |
14.75 |
|
|
12195-NX5-701 |
GASKET, CYLINDER (0.5T) |
1 |
14.75 |
|
|
12196-NX5-701 |
GASKET, CYLINDER (0.6T) |
(1) |
14.75 |
|
| 3 |
12211-NX5-750 |
HEAD, CYLINDER (se) |
1 |
0.00 |
|
| 4 |
12213-ND5-000 |
O-RING, CYLINDER HEAD (61x1.9) (se) |
1 |
9.95 |
|
| 5 |
14210-NX5-700 |
VALVE SET, EXHAUST (se) |
1 |
0.00 |
|
| 6 |
14221-NX5-000 |
SHAFT, EXHAUST VALVE (se) |
1 |
167.75 |
|
| 7 |
14223-NF5-750 |
COLLAR, RC VALVE SHAFT (8mm) (se) |
2 |
29.85 |
|
| 8 |
14420-NX5-750 |
ARM COMP, FRONT CYLINDER RC VALVE (se) |
1 |
0.00 |
|
| 9 |
18220-NX5-700 |
JOINT,EXH PIPE (se) |
1 |
0.00 |
|
| 10 |
18231-NX5-000 |
GASKET, EXHAUST JOINT (se) |
1 |
25.35 |
|
| 11 |
18359-KS7-000 |
SEAL, EXHAUST PIPE |
1 |
9.75 |
|
| 12 |
24329-KT8-000 |
COLLAR, GUIDE PLATE DISTANCE |
1 |
3.40 |
|
| 13 |
R7282-10 |
NGK SPARK PLUG, Heat Range 10, 14mm X 19mm, Fine Wire Iridium Center and Platinum Tipped Angled Ground Electrode, 0.61mm Gap, 16mm Hex Size, Gasket Seat, Resistor, Solid Terminal Nut, Short Plug (Requires TRS-1225 Cap) [Replaces R6120-10] |
(1) |
41.80 |
|
|
R7282-105 |
NGK SPARK PLUG, Heat Range 10.5, 14mm X 19mm, Fine Wire Iridium Center and Platinum Tipped Angled Ground Electrode, 0.61mm Gap, 16mm Hex Size, Gasket Seat, Resistor, Solid Terminal Nut, Short Plug (Requires TRS-1225 Cap) [Replaces R6120-105] |
1 |
41.65 |
|
|
R7282-11 |
NGK SPARK PLUG, Heat Range 11, 14mm X 19mm, Fine Wire Iridium Center and Platinum Tipped Angled Ground Electrode, 0.61mm Gap, 16mm Hex Size, Gasket Seat, Resistor, Solid Terminal Nut, Short Plug (Requires TRS-1225 Cap) [Replaces R6120-11] |
(1) |
68.59 |
|
| 14 |
90035-NX5-700 |
BOLT, POWER VALVE STOP (5x20) |
1 |
3.00 |
|
| 15 |
90037-NX5-000 |
BOLT, FLUID CHECK (6x10 SAFETY WIRE HOLES) [USE 90037-NX5-053] |
2 |
5.85 |
|
| 16 |
90201-415-000 |
NUT, CAP (6mm) |
7 |
2.85 |
|
| 17 |
90301-473-003 |
U-NUT (6mm) |
1 |
4.15 |
|
| 18 |
90505-425-000 |
WASHER (8mm) [USE 90524-030-000] |
1 |
1.70 |
|
| 19 |
90442-035-000 |
WASHER, SEALING (6mm) |
1 |
2.15 |
|
| 20 |
90488-425-000 |
WASHER, SEALING (6mm) |
7 |
2.25 |
|
| 21 |
90543-273-000 |
PACKING, FRONT FORK DRAIN |
2 |
1.70 |
|
| 22 |
91024-GJ5-003 |
BEARING, NEEDLE (12x16x10) |
2 |
6.10 |
|
| 23 |
91205-PH8-005 |
OIL SEAL (12x18x4) |
2 |
6.90 |
|
| 24 |
91302-HA5-003 |
O-RING (85.3x2) |
1 |
14.50 |
|
| 25 |
92900-06028-0E |
BOLT, STUD 2 (6x28) |
7 |
0.65 |
|
| 26 |
94001-05080-0S |
NUT, HEX (5mm) |
1 |
0.40 |
|
| 27 |
94050-08000 |
NUT, FLANGE (8mm) |
4 |
0.50 |
|
| 28 |
94301-06100 |
PIN, DOWEL (6x10) |
2 |
0.90 |
|
| 29 |
94301-10120 |
PIN, DOWEL (10x12) |
2 |
1.00 |
|
| 30 |
96001-06014-00 |
BOLT, FLANGE SH (6X14) |
3 |
0.65 |
|
