1996 Honda RS250R - E7 Crankcase

Crankcase and Crankcase Parts for a 1996 Honda RS250 Technical Sports One, LLC

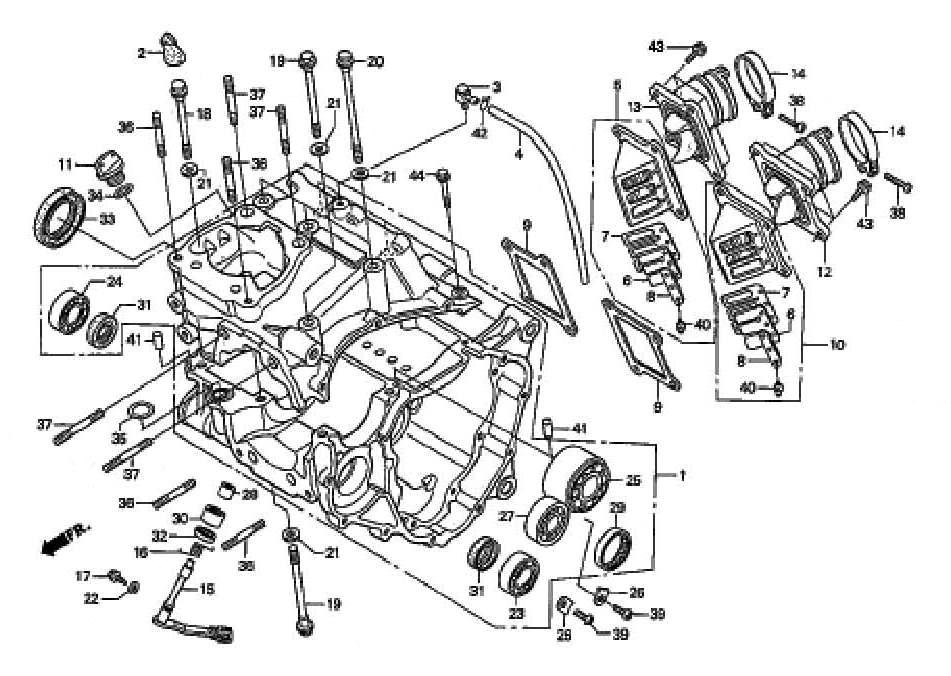

This image is the property and copyright of Honda Racing Corporation.


Ref Part Number Description Qty Req Qty 1 Price Buy
1 11000-NX5-307 CRANKCASE SET (se) 1 0.00
2 11102-NX5-600 PLUG, UPPER CRANKCASE (se) (1) 38.00
3 11106-GM2-300 JOINT, BREATHER 1 4.90
4 11206-NX4-770 TUBE, BREATHER (se) 1 12.20
5 14100-NX5-701 VALVE ASSY, REED REAR (se) 1 291.20
6 14111-NX5-701 PEDAL A, REED VALVE (se) [USE 14111-NX5-701R] 4 20.75
14111-NX5-600 VALVE ONLY, A REED (se) (4) 22.55
7 14112-NX5-701 PEDAL B, REED VALVE (se) [USE 14112-NX5-701R] 4 20.75
14112-NX5-601 VALVE ONLY, B REED (se) (4) 22.55
8 14121-NX5-003 STOPPER, REED VALVE (se) 4 0.00
9 14132-NX5-003 GASKET, REED VALVE (se) 2 16.90
10 14200-NX5-701 VALVE ASSY, REED FRONT (se) 1 291.20
11 15611-NF4-900 CAP, OIL FILLER 1 3.85
12 16210-NX5-770 INSULATOR, CARBURETOR FRONT (se) 1 225.20
13 16220-NX5-770 INSULATOR, CARBURETOR REAR (se) [USE 16220-NX5-700] 1 225.20
14 16223-KA5-690 BAND, CARBURETOR INSULATOR 2 11.75
15 22810-NX5-000 LEVER COMP, CLUTCH RELEASE (se) 1 137.25
16 22815-ML0-780 SPRING, CLUTCH LEVER 1 3.30
17 90002-KG4-000 BOLT, SPECIAL 6mm 1 2.85
18 90081-NX5-000 BOLT, FLANGE (9x62.5) (se) 1 0.00
19 90082-NX5-000 BOLT, FLANGE (9x87) (se) 2 0.00
20 90083-NX5-000 BOLT, FLANGE (9x114) (se) 3 0.00
21 90445-MM4-000 WASHER, 9mm 6 2.30
22 90543-273-000 PACKING, FRONT FORK DRAIN 1 1.70
23 91001-NX5-701 BEARING, RADIAL BALL SPECIAL (20x47x14) (se) 1 0.00
24 91005-GF9-003 BEARING, RADIAL BALL 1 12.70
25 91010-NX5-003 BEARING, BALL 5205-M (se) 1 0.00
26 91012-KA3-710 PLATE, COUNTER SHAFT BEARING 2 2.70
27 91012-NX5-000 BEARING, BALL (6204Z) (se) 1 0.00
28 91021-148-004 BEARING, NEEDLE 1010 1 10.10
29 91022-KA4-740 BEARING, SHELL (33x38x8) 1 11.75
30 91101-PZ9-000 BEARING, NEEDLE, 12x16x10 1 4.65
31 91203-NX5-003 OIL SEAL (25x35x7) (se) 2 4.10
32 91206-KV3-003 OIL SEAL (12x19x5) 1 2.85
33 91261-MB0-003 OIL SEAL (34x50x7) 1 7.90
34 91304-MJ0-003 O-RING (15.8x2.4) [USE 91303-800-000] 1 1.70
35 91361-MB0-000 O RING (19x1.9) (se) 1 5.20
36 92900-08032-3E BOLT, STUD (8x32) 4 1.00
37 92900-08035-3E BOLT, STUD (8x35) 4 1.00
38 93500-05025-0G SCREW, PAN HEAD (5x25) 2 0.45
39 93600-06012-0A SCREW, FLAT HEAD (6x12) 2 0.40
40 93892-03008-08 SCREW-WASHER (3x8) 12 0.50
41 94303-08140 PIN, DOWEL SOLID (8x14) 2 0.85
42 95002-02070 CLIP, TUBE (B7) 1 0.50
43 96001-06022-00 BOLT, FLANGE SH (6x22) 8 0.80
44 96001-06025-00 BOLT, FLANGE (6x25) 3 0.65
