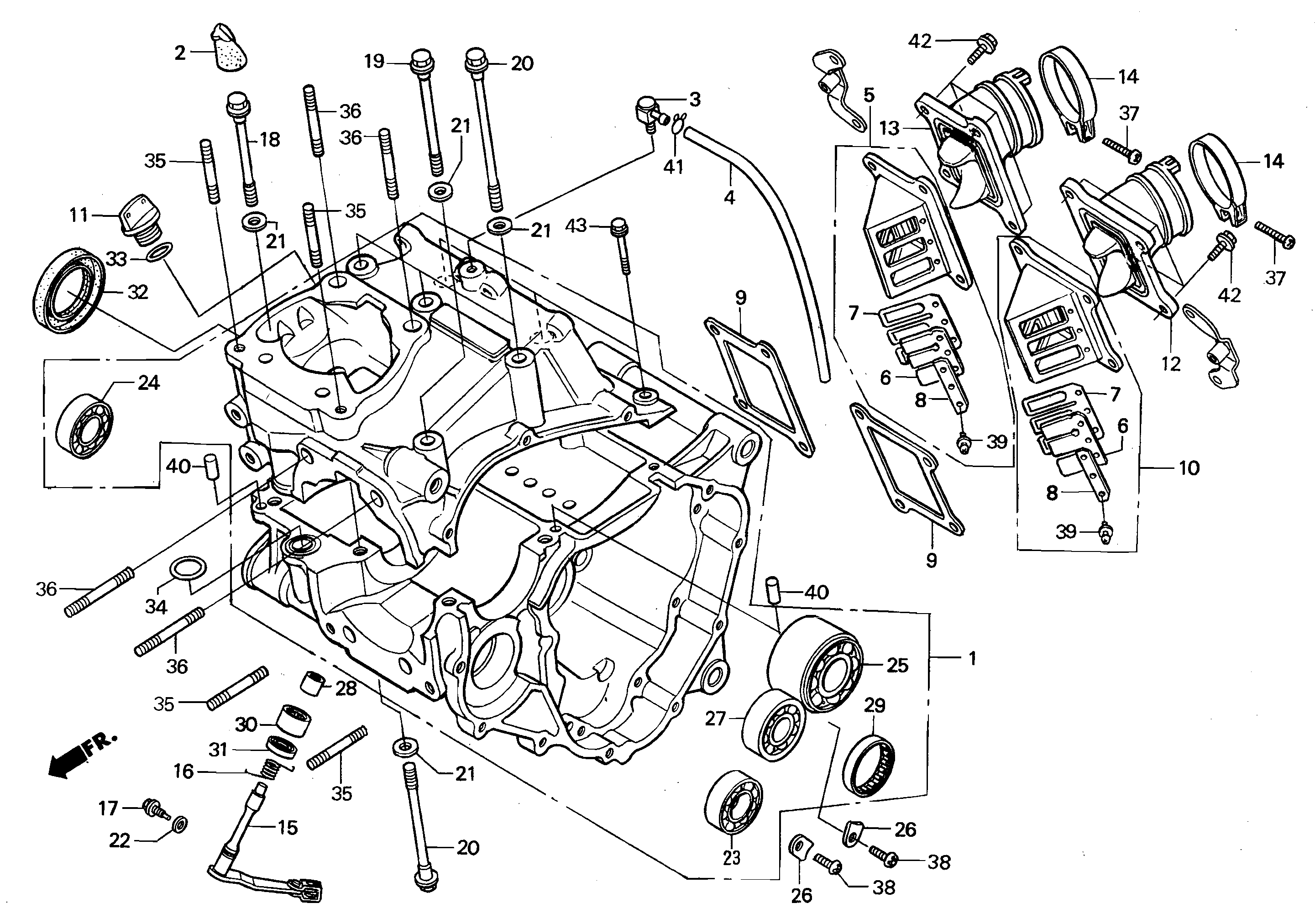

| 1 |
11000-NX5-309 |
CRANKCASE SET (se) |
1 |
0.00 |
|
| 2 |
11102-NX5-600 |
PLUG, UPPER CRANKCASE (se) |
(1) |
38.00 |
|
| 3 |
11106-GM2-300 |
JOINT, BREATHER |
1 |
4.90 |
|
| 4 |
11206-KR8-000 |
TUBE,BREATHER |
1 |
4.65 |
|
| 5 |
14100-NX5-701 |
VALVE ASSY, REED REAR (se) |
1 |
291.20 |
|
| 6 |
14111-NX5-701 |
PEDAL A, REED VALVE (se) [USE 14111-NX5-701R] |
4 |
20.75 |
|
|
14111-NX5-600 |
VALVE ONLY, A REED (se) |
(4) |
22.55 |
|
| 7 |
14112-NX5-701 |
PEDAL B, REED VALVE (se) [USE 14112-NX5-701R] |
4 |
20.75 |
|
|
14112-NX5-601 |
VALVE ONLY, B REED (se) |
(4) |
22.55 |
|
| 8 |
14121-NX5-003 |
STOPPER, REED VALVE (se) |
4 |
0.00 |
|
| 9 |
14132-NX5-003 |
GASKET, REED VALVE (se) |
2 |
16.90 |
|
| 10 |
14200-NX5-701 |
VALVE ASSY, REED FRONT (se) |
1 |
291.20 |
|
| 11 |
15611-NF4-900 |
CAP, OIL FILLER |
1 |
3.85 |
|
| 12 |
16210-NX5-770 |
INSULATOR, CARBURETOR FRONT (se) |
1 |
225.20 |
|
| 13 |
16220-NX5-770 |
INSULATOR, CARBURETOR REAR (se) [USE 16220-NX5-700] |
1 |
225.20 |
|
| 14 |
16223-KA5-690 |
BAND, CARBURETOR INSULATOR |
2 |
11.75 |
|
| 15 |
22810-NX5-000 |
LEVER COMP, CLUTCH RELEASE (se) |
1 |
137.25 |
|
| 16 |
22815-ML0-780 |
SPRING, CLUTCH LEVER |
1 |
3.30 |
|
| 17 |
90002-KG4-000 |
BOLT, SPECIAL 6mm |
1 |
2.85 |
|
| 18 |
90081-NX5-000 |
BOLT, FLANGE (9x62.5) (se) |
1 |
0.00 |
|
| 19 |
90082-NX5-000 |
BOLT, FLANGE (9x87) (se) |
1 |
0.00 |
|
| 20 |
90083-NX5-000 |
BOLT, FLANGE (9x114) (se) |
4 |
0.00 |
|
| 21 |
90445-MM4-000 |
WASHER, 9mm |
6 |
2.30 |
|
| 22 |
90543-273-000 |
PACKING, FRONT FORK DRAIN |
1 |
1.70 |
|
| 23 |
91001-NX5-701 |
BEARING, RADIAL BALL SPECIAL (20x47x14) (se) |
1 |
0.00 |
|
| 24 |
91005-NX5-771 |
BEARING, BALL 6005Z SPECIAL |
1 |
10.15 |
|
| 25 |
91010-NX5-003 |
BEARING, BALL 5205-M (se) |
1 |
0.00 |
|
| 26 |
91012-KA3-710 |
PLATE, COUNTER SHAFT BEARING |
2 |
2.70 |
|
| 27 |
91012-NX5-000 |
BEARING, BALL (6204Z) (se) |
1 |
0.00 |
|
| 28 |
91021-148-004 |
BEARING, NEEDLE 1010 |
1 |
10.10 |
|
| 29 |
91022-KA4-740 |
BEARING, SHELL (33x38x8) |
1 |
11.75 |
|
| 30 |
91101-PZ9-000 |
BEARING, NEEDLE, 12x16x10 |
1 |
4.65 |
|
| 31 |
91206-KV3-003 |
OIL SEAL (12x19x5) |
1 |
2.85 |
|
| 32 |
91261-MB0-003 |
OIL SEAL (34x50x7) |
1 |
7.90 |
|
| 33 |
91304-MJ0-003 |
O-RING (15.8x2.4) [USE 91303-800-000] |
1 |
1.70 |
|
| 34 |
91361-MB0-000 |
O RING (19x1.9) (se) |
1 |
5.20 |
|
| 35 |
92900-08032-3E |
BOLT, STUD (8x32) |
4 |
1.00 |
|
| 36 |
92900-08035-3E |
BOLT, STUD (8x35) |
4 |
1.00 |
|
| 37 |
93500-05025-0G |
SCREW, PAN HEAD (5x25) |
2 |
0.45 |
|
| 38 |
93600-06012-0A |
SCREW, FLAT HEAD (6x12) |
2 |
0.40 |
|
| 39 |
93892-03008-08 |
SCREW-WASHER (3x8) |
12 |
0.50 |
|
| 40 |
94303-08140 |
PIN, DOWEL SOLID (8x14) |
2 |
0.85 |
|
| 41 |
95002-02070 |
CLIP, TUBE (B7) |
1 |
0.50 |
|
| 42 |
96001-06022-00 |
BOLT, FLANGE SH (6x22) |
8 |
0.80 |
|
| 43 |
96001-06025-00 |
BOLT, FLANGE (6x25) |
3 |
0.65 |
|
