1998 Honda RS250 - E10 Gear Shift Drum / Gear Shift Forks

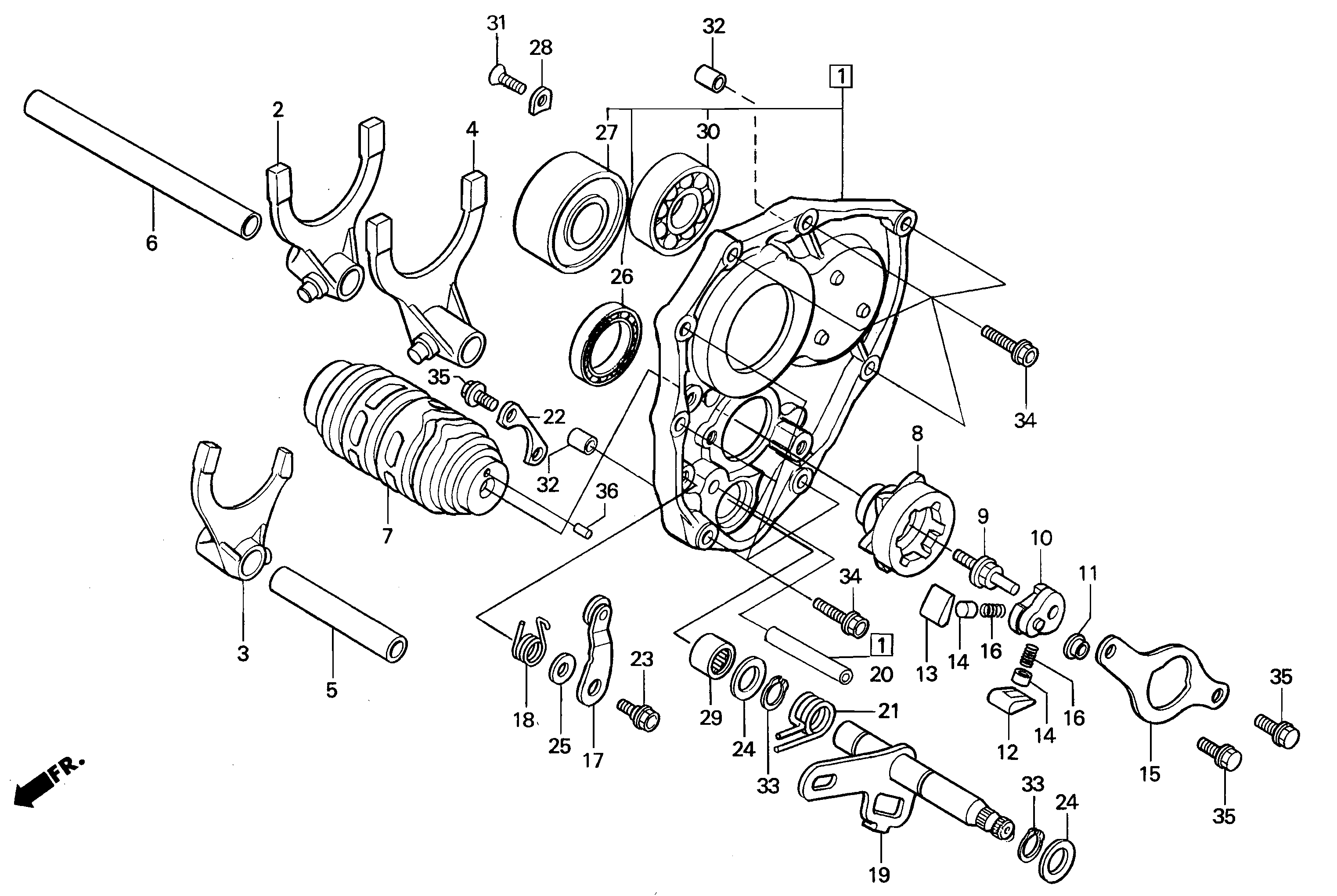

Gear Shift Drum / Gear Shift Forks for a 1998 Honda RS250 Technical Sports One, LLC

This image is the property and copyright of Honda Racing Corporation.


Ref Part Number Description Qty Req Qty 1 Price Buy
1 11130-NX5-750 HOLDER COMP, TRANSMISSION BEARING (se) 1 0.00
2 24211-NX5-000 FORK, GEAR SHIFT RIGHT (se) 1 0.00
3 24221-NX5-700 FORK, GEAR SHIFT CENTER (se) 1 168.90
4 24231-NX5-000 FORK, GEAR SHIFT LEFT (se) 1 168.90
5 24265-KA3-760 SHAFT M, SHIFT FORK 1 13.75
6 24266-NX5-000 SHAFT C, SHIFT FORK (se) 1 0.00
7 24311-NX5-000 DRUM, GEAR SHIFT (se) 1 0.00
8 24312-NX5-000 CENTER SHIFT DRUM (se) 1 0.00
9 24315-HA0-000 PIN, SHIFTER 1 6.50
10 24321-KW6-902 SHIFTER, GEAR SHIFT DRUM 1 38.20
11 24322-HA0-000 COLLAR, SHIFTER 1 4.35
12 24324-KA3-711 PAWL A, RACHET 1 7.20
13 24325-KA3-711 PAWL B, RACHET 1 7.20
14 24326-KBH-901 PLUNGER, PAWL 2 5.15
15 24328-NX5-000 PLATE, GUIDE (se) 1 0.00
16 24329-KA3-740 SPRING, PAWL PLUNGER 2 1.90
17 24430-KA3-740 ARM, SHIFT DRUM STOPPER 1 12.40
18 24435-KV3-000 SPRING, DRUM STOPPER (se) 1 13.55
19 24610-NX5-000 SPDL COMP, GEAR SHIFT (se) 1 0.00
20 24615-NX5-300 PIN,SHIFT STOPPER 1 10.30
21 24651-KV3-700 SPRING, GEAR SHIFT RETURN 1 5.65
22 24655-KV3-000 PLATE, BEARING SET 1 7.80
23 90022-MG8-000 PIVOT, SHIFT DRUM STOPPER ARM 1 3.00
24 90428-958-000 WASHER B, THRUST (14mm) 2 3.40
25 90435-HB3-000 WASHER (6.1mm) 1 2.30
26 91004-KY4-900 BEARING, RADIAL BALL (6905U) 1 12.85
27 91011-NX5-000 BEARING, BALL 5205Z 1 12.70
28 91012-KA3-710 PLATE, COUNTER SHAFT BEARING 1 2.70
29 91101-121-691 BEARING, NEEDLE (14x20x12) 1 13.10
30 91102-GE1-711 BEARING, BALL 6204 1 11.15
31 93600-06012-0A SCREW, FLAT HEAD (6x12) 1 0.40
32 94303-08140 PIN, DOWEL SOLID (8x14) 2 0.85
33 94510-14000 CIRCLIP, EXTERNAL (14mm) 2 0.45
34 95701-06028-08 BOLT, FLANGE (6x28) 8 0.75
35 96001-06014-00 BOLT, FLANGE SH (6X14) 4 0.65
36 96220-40080 ROLLER (4x8) 1 0.25
