1998 Honda RS250R - F10 Carburetor Box

Carburetor Box Parts for a 1998 Honda RS250 Technical Sports One, LLC

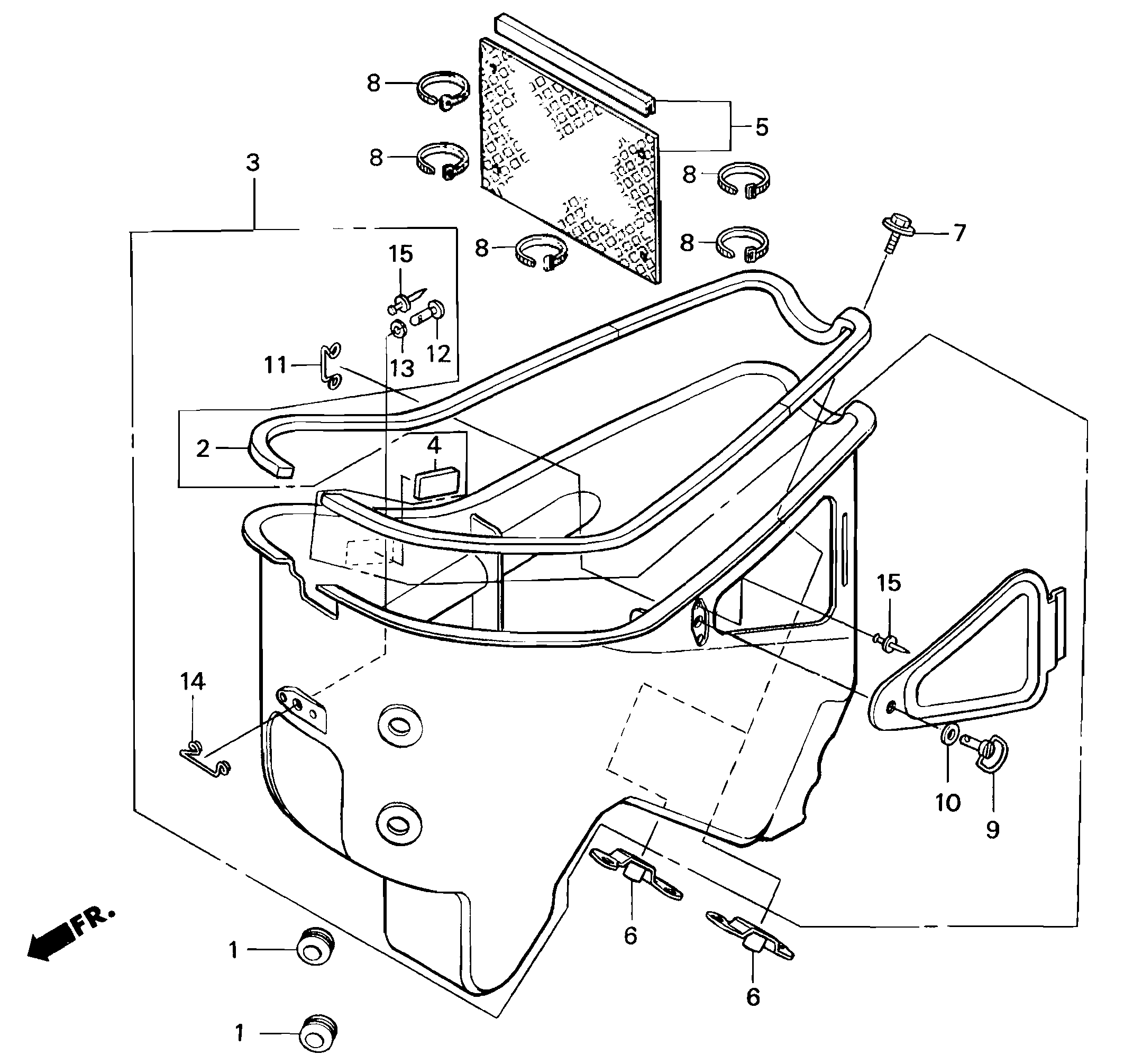

This image is the property and copyright of Honda Racing Corporation.


Ref Part Number Description Qty Req Qty 1 Price Buy
1 55204-GJ2-000 GROMMET, OIL TUBE 2 3.00
2 64234-NX5-770 SEAL, GAP (400x15x10T) (se) 3 0.00
3 80101-NX5-770 BOX,CARBRETOR (se) 1 0.00
4 80102-NX5-770 RUBBER,BOX SIDE 2 13.95
5 80108-NX5-770 FILTER,CARB BOX 1 55.75
6 80109-NX5-770 STAY, CARBURETOR AIR BOX (se) 2 0.00
7 90108-GK1-000 BOLT, FLANGE SH (6x12) 2 1.95
8 90652-ND5-000 TY-WRAP (2.4x92) 5 0.85
9 90654-NX5-770 STUD, FASTENER 35 1 15.40
10 90655-NX5-770 GROMMET, FASTENER 1 1.45
11 90656-NX5-770 SPRING,FASTENER 35 1 2.70
12 90754-NX5-770 STUD, FASTENER 30 (se) 1 0.00
13 90755-NX5-770 GROMMET, FASTENER 1 0.45
14 90756-NX5-770 SPRING, FASTENER 1 3.40
15 91082-NF5-000 RIVET, BLIND (2.4x5.7) 4 0.30
