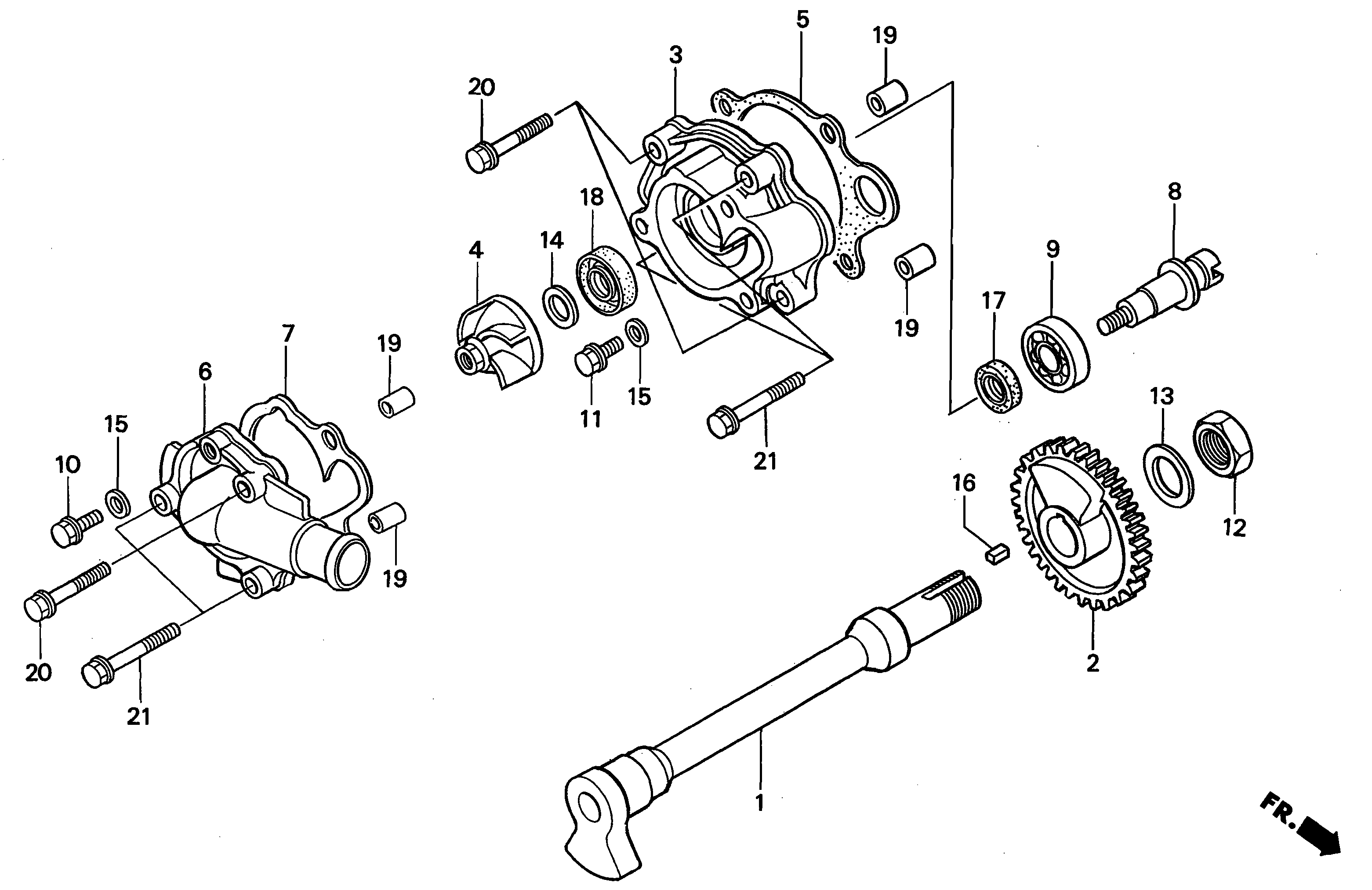

| 1 |
13420-NX5-770 |
SHAFT COMP, BALANCER (se) |
1 |
0.00 |
|
| 2 |
13426-NX5-700 |
GEAR, BALANCER DRIVEN |
1 |
122.45 |
|
| 3 |
19210-NX5-680 |
BODY, WATER PUMP (se) |
1 |
0.00 |
|
| 4 |
19215-KA5-690 |
IMPELLER, WATER PUMP |
1 |
30.70 |
|
| 5 |
19219-NX5-003 |
GASKET, WATER PUMP BODY (se) |
1 |
16.90 |
|
| 6 |
19220-NX5-000 |
COVER WATER PUMP (se) |
1 |
0.00 |
|
| 7 |
19229-NX5-003 |
GASKET, WATER PUMP COVER (se) |
1 |
14.10 |
|
| 8 |
19233-NX5-700 |
SHAFT, WATER PUMP (se) |
1 |
123.50 |
|
| 9 |
50814-GZ5-003 |
BEARING, RADIAL BALL 6001 |
1 |
10.40 |
|
| 10 |
90037-NX5-000 |
BOLT, FLUID CHECK (6x10 SAFETY WIRE HOLES) [USE 90037-NX5-053] |
1 |
5.85 |
|
| 11 |
90134-NX5-000 |
BOLT, DRAIN (6x10) |
1 |
2.45 |
|
| 12 |
90301-HA7-670 |
NUT, LOCK 20mm |
1 |
6.35 |
|
| 13 |
90432-121-000 |
WASHER, LOCK |
1 |
3.00 |
|
| 14 |
90447-KE1-000 |
WASHER, SEALING (7MM) |
1 |
1.50 |
|
| 15 |
90543-273-000 |
PACKING, FRONT FORK DRAIN |
2 |
1.70 |
|
| 16 |
90701-NX5-000 |
KEY (4x4x7) (se) |
1 |
19.75 |
|
| 17 |
91201-965-000 |
OIL SEAL (12x22x5) |
1 |
3.60 |
|
| 18 |
91211-KA3-761 |
SEAL, WATER PUMP (NOK) (12x25x7) |
1 |
4.70 |
|
| 19 |
94301-08100 |
PIN, DOWEL (8x10) |
4 |
0.85 |
|
| 20 |
96001-06028-00 |
BOLT, FLANGE SH (6x28) |
3 |
0.65 |
|
| 21 |
96001-06032-00 |
BOLT, FLANGE (6x32) |
4 |
0.65 |
|
