1999 Honda RS250 - E8 Crankshaft / Piston

Crankshaft / Piston / Piston Ring Parts for a 1999 Honda RS250 Technical Sports One, LLC

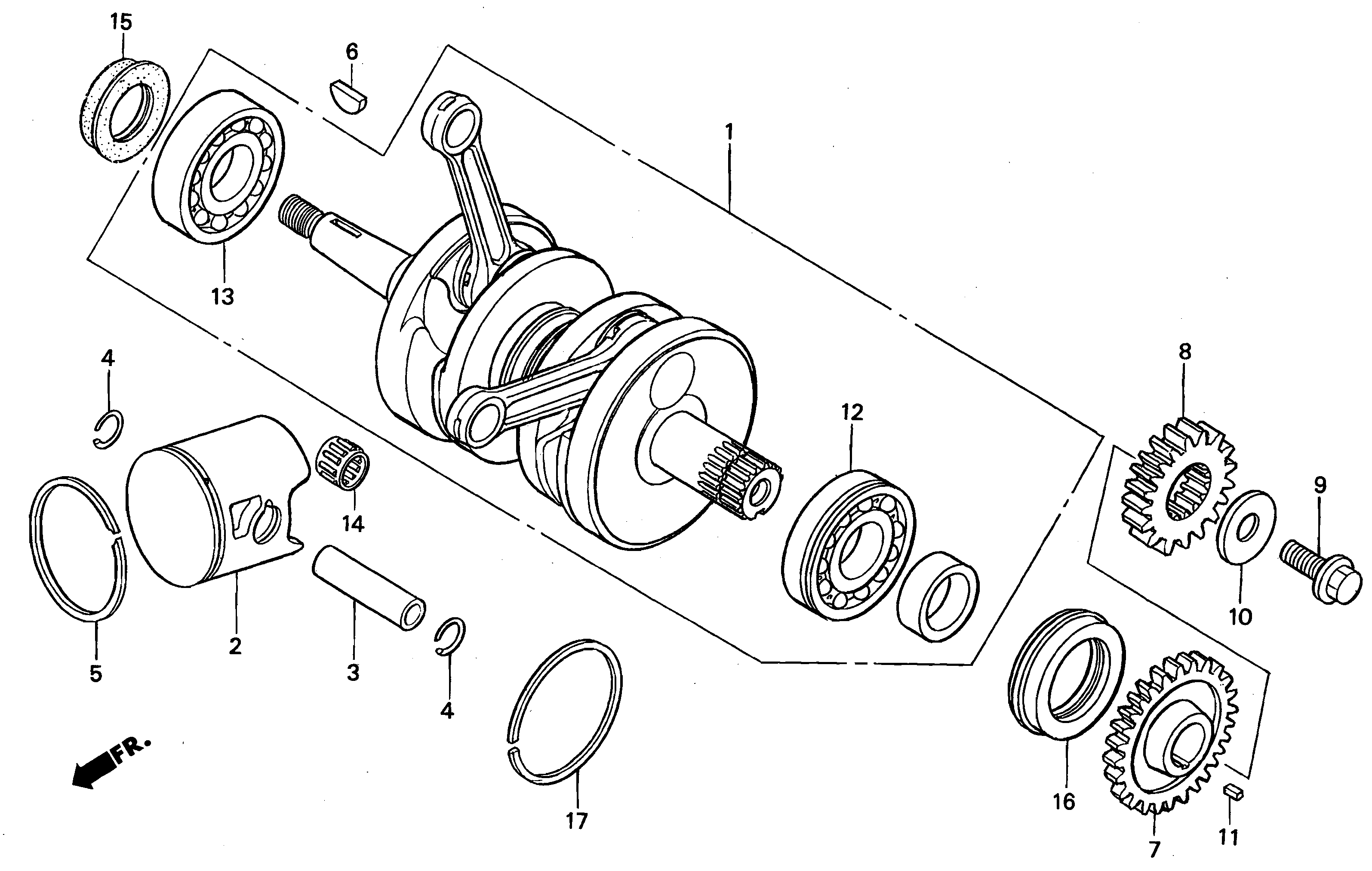

This image is the property and copyright of Honda Racing Corporation.


Ref Part Number Description Qty Req Qty 1 Price Buy
1 13000-NXA-610 CRANKSHAFT COMP (se) 1 0.00
2 13100-NX5-791 PISTON COMP (1994+) (se) 2 208.65
3 13111-KV3-000 PIN, PISTON (15mm) 2 14.25
4 13112-NX5-700 CLIP, PISTON PIN (15mm) (se) 4 3.40
5 13121-NX4-811 RING, PISTON (se) 2 54.90
6 13331-360-000 KEY, SPECIAL WOODRUFF (25x14) 1 3.90
7 13415-NX5-710 GEAR, BALANCER DRIVE (se) 1 91.50
8 13615-NX5-710 GEAR, PRIMARY DRIVE (se) 1 0.00
9 90001-NX5-700 BOLT, FLANGE (12x30) 1 2.85
10 90401-NX5-700 WASHER (12.5x34x5) 1 4.25
11 90701-NX5-000 KEY (4x4x7) (se) 1 19.75
12 91001-NX5-003 BEARING, BALL RADIAL 6305-L (se) 1 36.60
13 91003-NX5-003 BEARING, BALL RADIAL 6305-R (se) 1 36.60
14 91101-NX5-023 BEARING, PISTON PIN (se) 2 41.20
15 91201-KM4-003 OIL SEAL (25x38x8) 1 8.25
16 91202-NX5-771 OIL SEAL (34x62x3.5) (se) 1 57.95
17 94560-62200 RING, SNAP (62mm) 1 1.50
