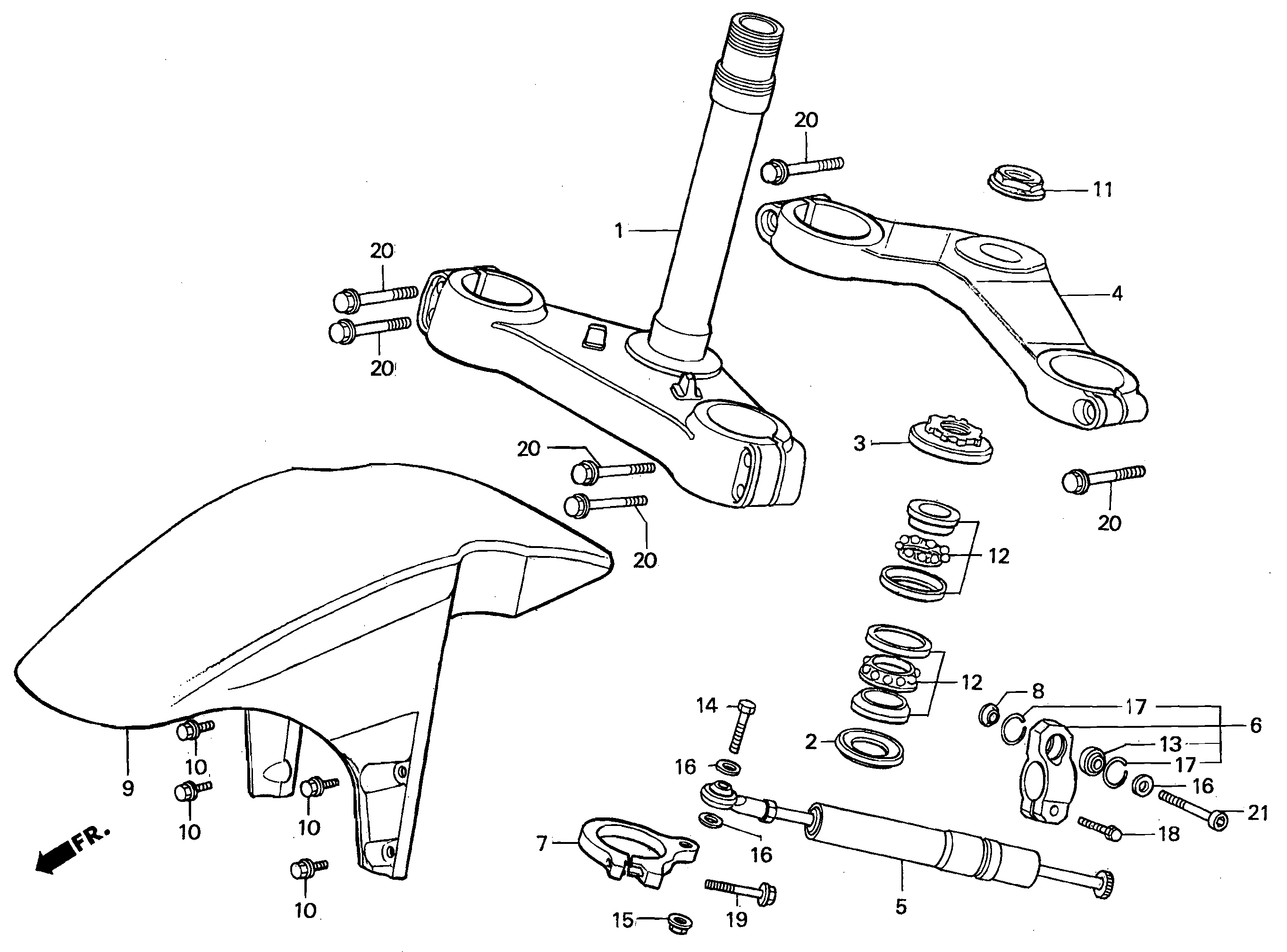

| 1 |
53200-NX5-010 |
STEM COMP,STRG(25) (se) |
1 |
0.00 |
|
| 2 |
53214-MR7-003 |
DUST SEAL, STEERING HEAD |
1 |
4.55 |
|
| 3 |
53220-MR7-000 |
THREAD, STEERING HEAD TOP |
1 |
23.65 |
|
| 4 |
53230-NX5-000 |
BRIDGE,FORK TOP(25) (se) |
1 |
0.00 |
|
| 5 |
53700-NL0-003 |
DAMPER ASSY, STEERING |
1 |
333.55 |
|
| 6 |
53705-NF5-760 |
HOLDER ASSY, STEERING DAMPER |
1 |
140.75 |
|
| 7 |
53710-NF5-611 |
STAY,STRG DAMPER |
1 |
95.75 |
|
| 8 |
53713-NC8-000 |
SPACER, STEERING DAMPER (se) |
1 |
14.95 |
|
| 9 |
61100-NX5-000 |
FENDER FRONT (se) |
1 |
0.00 |
|
| 10 |
90108-GK1-000 |
BOLT, FLANGE SH (6x12) |
4 |
1.95 |
|
| 11 |
90302-NF5-760 |
NUT, STEERING STEM |
1 |
24.95 |
|
| 12 |
91016-MR7-003 |
BEARING, HEAD PIPE |
2 |
26.05 |
|
| 13 |
91060-NL0-003 |
BEARING, SPHERICAL 8mm |
1 |
43.95 |
|
| 14 |
92201-08032-0A |
BOLT, HEX HEAD (8x32) |
1 |
0.60 |
|
| 15 |
94002-08000-0S |
NUT, HEX (8mm) |
1 |
0.40 |
|
| 16 |
94102-08000 |
WASHER, PLAIN (8mm) |
3 |
0.35 |
|
| 17 |
94601-17000 |
CLIP, PISTON PIN (17mm) |
2 |
0.40 |
|
| 18 |
96001-06028-00 |
BOLT, FLANGE SH (6x28) |
1 |
0.65 |
|
| 19 |
96001-06035-00 |
BOLT, FLANGE SH (6x35) |
1 |
0.80 |
|
| 20 |
96300-08035-00 |
BOLT, FLANGE (8x35) |
6 |
0.85 |
|
| 21 |
96700-08032-10 |
BOLT, SOCKET HEAD (8x32) |
1 |
0.80 |
|
