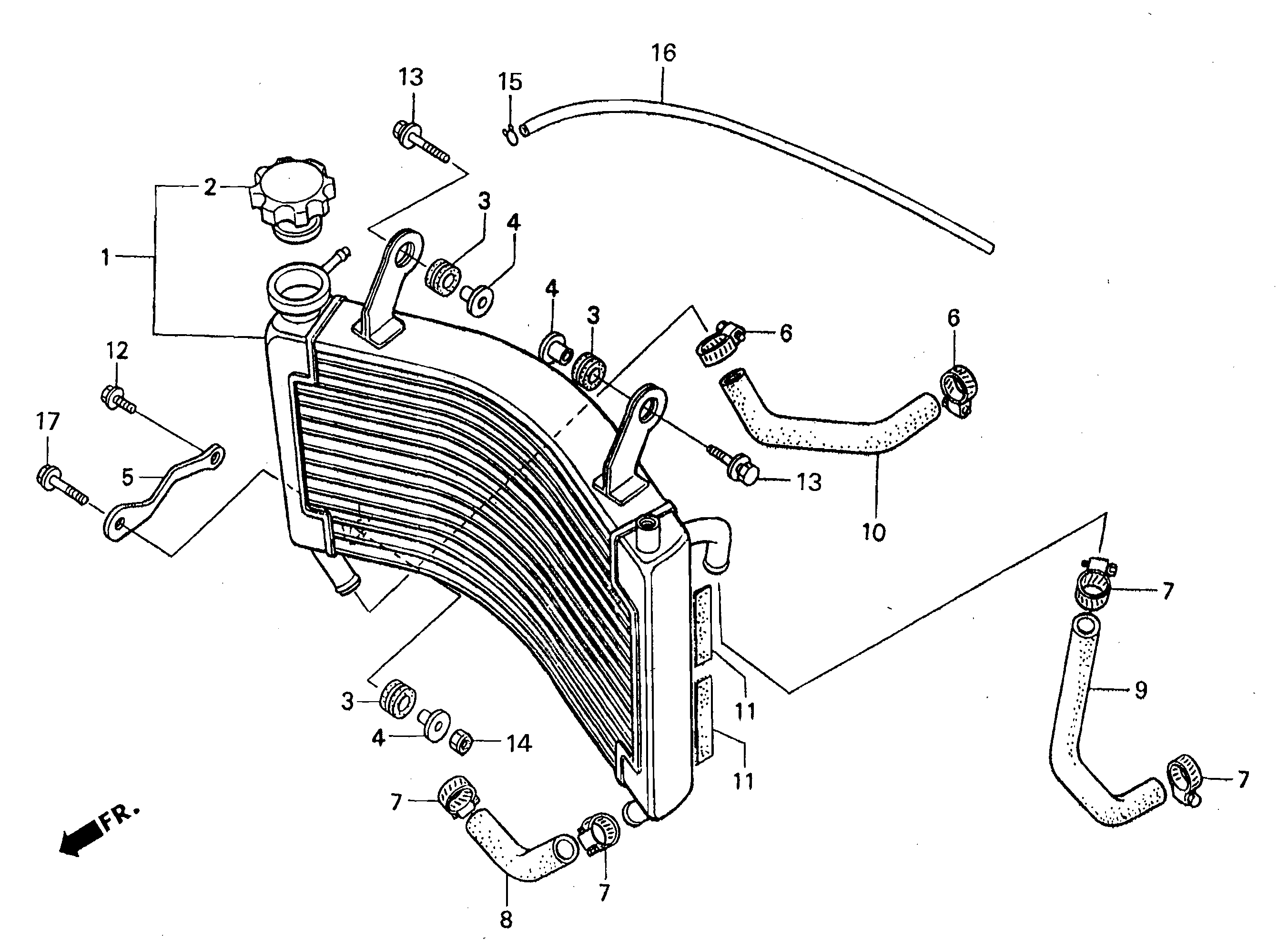

| 1 |
19010-NX5-701 |
RADIATOR COMP (se) |
1 |
0.00 |
|
| 2 |
19037-NX5-003 |
CAP COMP, RADIATOR (1.1) (se) |
1 |
0.00 |
|
| 3 |
19051-KA3-830 |
RUBBER, RADIATOR MOUNT |
3 |
2.60 |
|
| 4 |
19052-MAC-680 |
COLLAR, RADIATOR MOUNT |
3 |
3.15 |
|
| 5 |
19110-NX5-700 |
STAY, RADIATOR (se) |
1 |
0.00 |
|
| 6 |
19505-ML3-770 |
CLAMP, WATER HOSE |
2 |
7.35 |
|
| 7 |
19506-KS6-700 |
CLAMP B, WATER HOSE |
4 |
6.05 |
|
| 8 |
19514-NX5-000 |
HOSE A, WATER (se) |
1 |
0.00 |
|
| 9 |
19515-NX5-000 |
HOSE B,WATER (se) |
1 |
11.30 |
|
| 10 |
19516-NX5-000 |
HOSE C,WATER (se) |
1 |
9.90 |
|
| 11 |
50383-HC4-750 |
RUBBER, BATTERY REAR |
4 |
3.35 |
|
| 12 |
90134-ND5-000 |
BOLT, FLUID CHECK (6x10 SAFETY WIRE HOLES) [USE 90037-NX5-053] |
1 |
5.85 |
|
| 13 |
93404-06025-00 |
BOLT-WASHER (6x25) |
2 |
0.65 |
|
| 14 |
94050-06000 |
NUT, FLANGE (6mm) |
1 |
0.55 |
|
| 15 |
95002-02080 |
CLIP, TUBE (B8) |
1 |
0.50 |
|
| 16 |
95003-14025-10 |
V-TUBE (6x9x250) [USE 95003-14001-10M] |
1 |
1.70 |
|
| 17 |
96500-06025-08 |
BOLT, FLANGE (6x25) |
1 |
0.75 |
|
