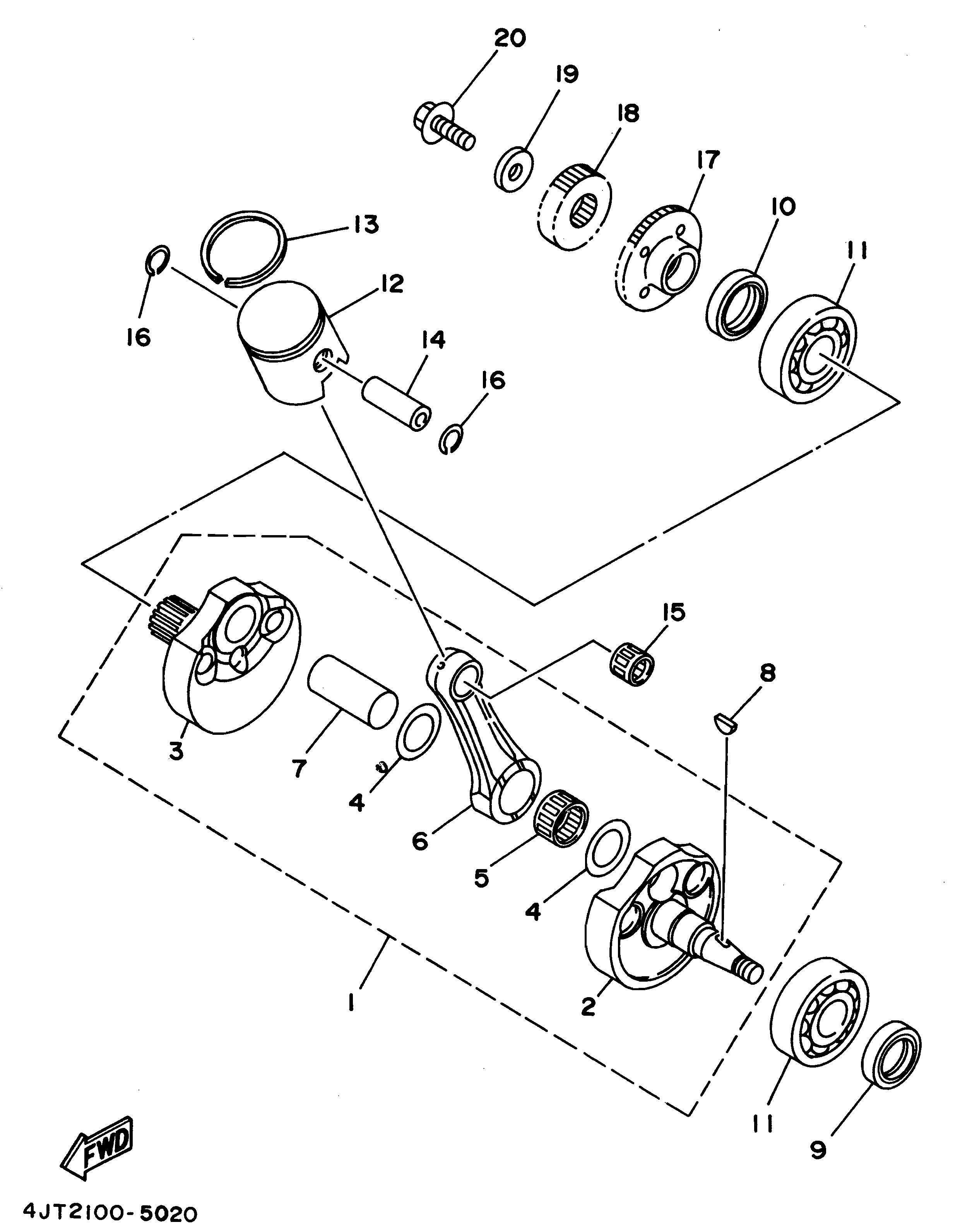

| 1 |
4JT-11400-01 |
CRANKSHAFT ASSY. (se) |
1 |
0.00 |
|
| 2 |
4JT-11412-01 |
CRANK 1 (se) |
1 |
0.00 |
|
| 3 |
4JT-11422-01 |
CRANK 2 (se) |
1 |
0.00 |
|
| 4 |
90209-24327 |
WASHER, THRUST |
2 |
17.40 |
|
| 5 |
93310-524P1 |
BEARING, LOWER CONNECTING ROD [USE 93310-52403] |
1 |
79.00 |
|
| 6 |
4JT-11651-00 |
ROD, CONNECTING TZ 125 (se) [USE 3XV-11651-01] |
1 |
68.65 |
|
| 7 |
4JT-11681-00 |
PIN, CRANK 1 (se) [USE 4JT-11681-00R] |
1 |
37.50 |
|
| 8 |
90280-04001 |
KEY, WOODRUFF (856) [USE 90280-04051] (se) |
1 |
0.00 |
|
| 9 |
93102-25142 |
OIL SEAL, CRANKSHAFT (24.8x38x7-662) |
1 |
13.20 |
|
| 10 |
93103-32177 |
OIL SEAL (4JT) [USE 93103-32183] |
1 |
24.05 |
|
| 11 |
93306-30566 |
BEARING, CRANKSHAFT [USE 93306-30560] |
2 |
32.45 |
|
| 12 |
4DP-11631-01-A0 |
PISTON, STANDARD (A) [USE 4DP-11631-02-A0] |
1 |
123.95 |
|
|
4DP-11631-01-B0 |
PISTON, STANDARD (B) [USE 4DP-11631-02-B0] |
1 |
123.95 |
|
|
4DP-11631-01-C0 |
PISTON, STANDARD (C) [USE 4DP-11631-02-C0] (se) |
1 |
123.95 |
|
|
4DP-11631-01-D0 |
PISTON, STANDARD (D) [USE 4DP-11631-02-D0] (se) |
1 |
0.00 |
|
| 13 |
1RK-11611-01 |
RING, PISTON |
1 |
68.75 |
|
| 14 |
137-11633-10 |
PIN, PISTON |
1 |
18.40 |
|
| 15 |
93310-316D5 |
BEARING, PISTON PIN (4L1) |
1 |
26.60 |
|
| 16 |
93450-17129 |
CLIP, PISTON PIN |
2 |
1.35 |
|
| 17 |
4JT-11536-00 |
GEAR, DRIVE BALANCER SHAFT |
1 |
153.60 |
|
| 18 |
4JT-16111-01 |
GEAR, PRIMARY DRIVE |
1 |
50.55 |
|
| 19 |
90201-10144 |
WASHER, PLATE |
1 |
2.00 |
|
| 20 |
90105-10445 |
BOLT, WASHER BASED HEAD |
1 |
6.35 |
|
