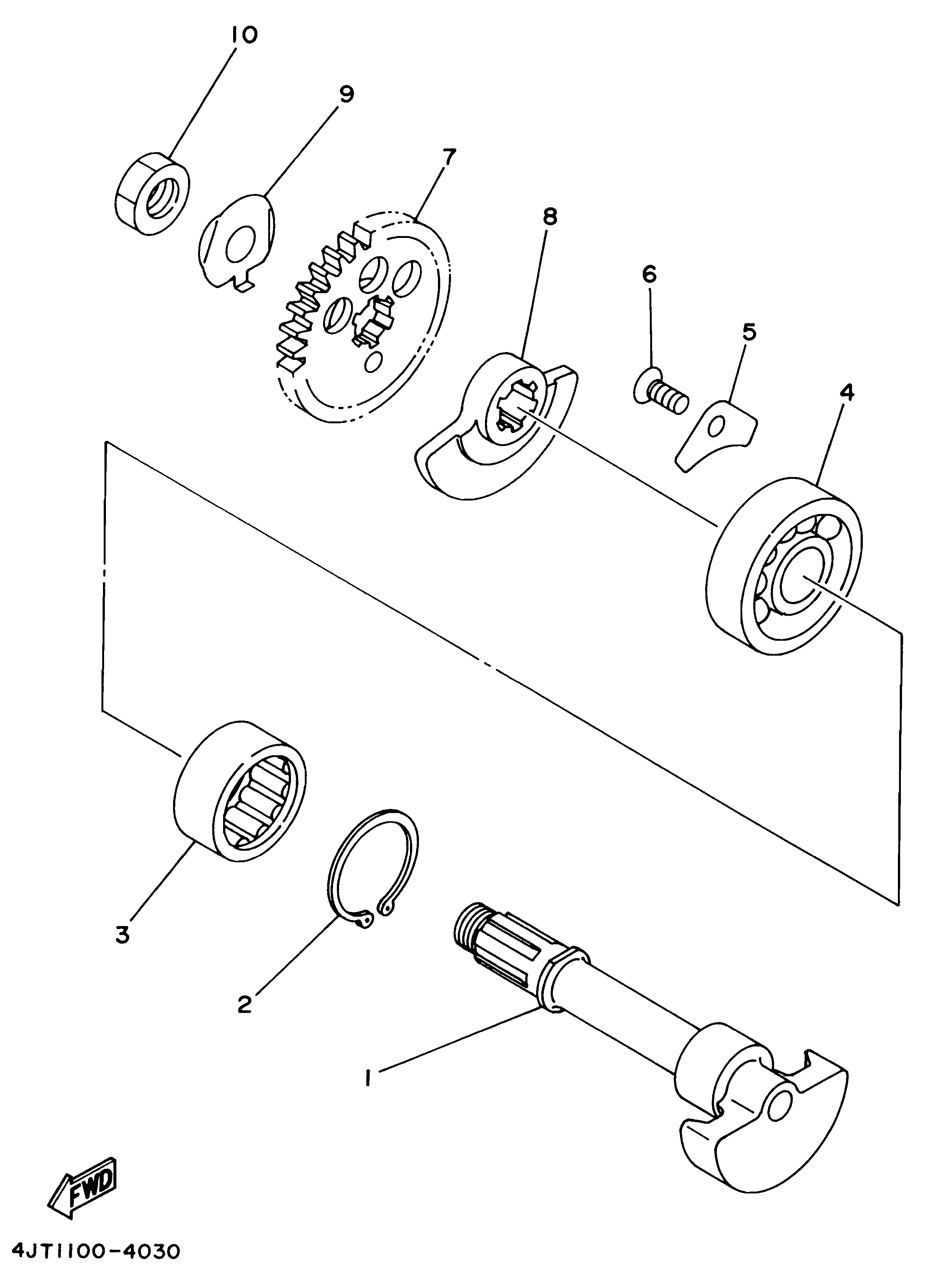

1995 Yamaha TZ125 (4JT2) - E4 Balancer Shaft
This image is the property and copyright of Yamaha Motor Co., Ltd
Home
Search Site
View Cart
TZ125 Main Page
▼
◀
1995 TZ125
▶
▲
Ref
Part Number
Description
Qty Req
Qty 1 Price
Buy
1
4JT-11455-00
SHAFT 1 (se)
1
0.00
2
93420-37074
CIRCLIP
1
11.80
3
93311-62574
BEARING, CYLINDRICAL
1
50.75
4
93306-30316
BEARING
1
23.85
5
2K7-15383-00
PLATE, BEARING COVER [USE 4XM-15383-00]
1
8.90
6
90151-06056
SCREW, C0UNTERSUNK
1
2.50
7
4JT-11531-00
GEAR, BALANCE WT (se)
1
0.00
8
4JT-11454-00
WEIGHT 1 (se)
1
0.00
9
90215-14204
WASHER, LOCK (2K6)
1
3.85
10
90170-14171
NUT
1
4.10
