| 1 |
4JT-14101-20 |

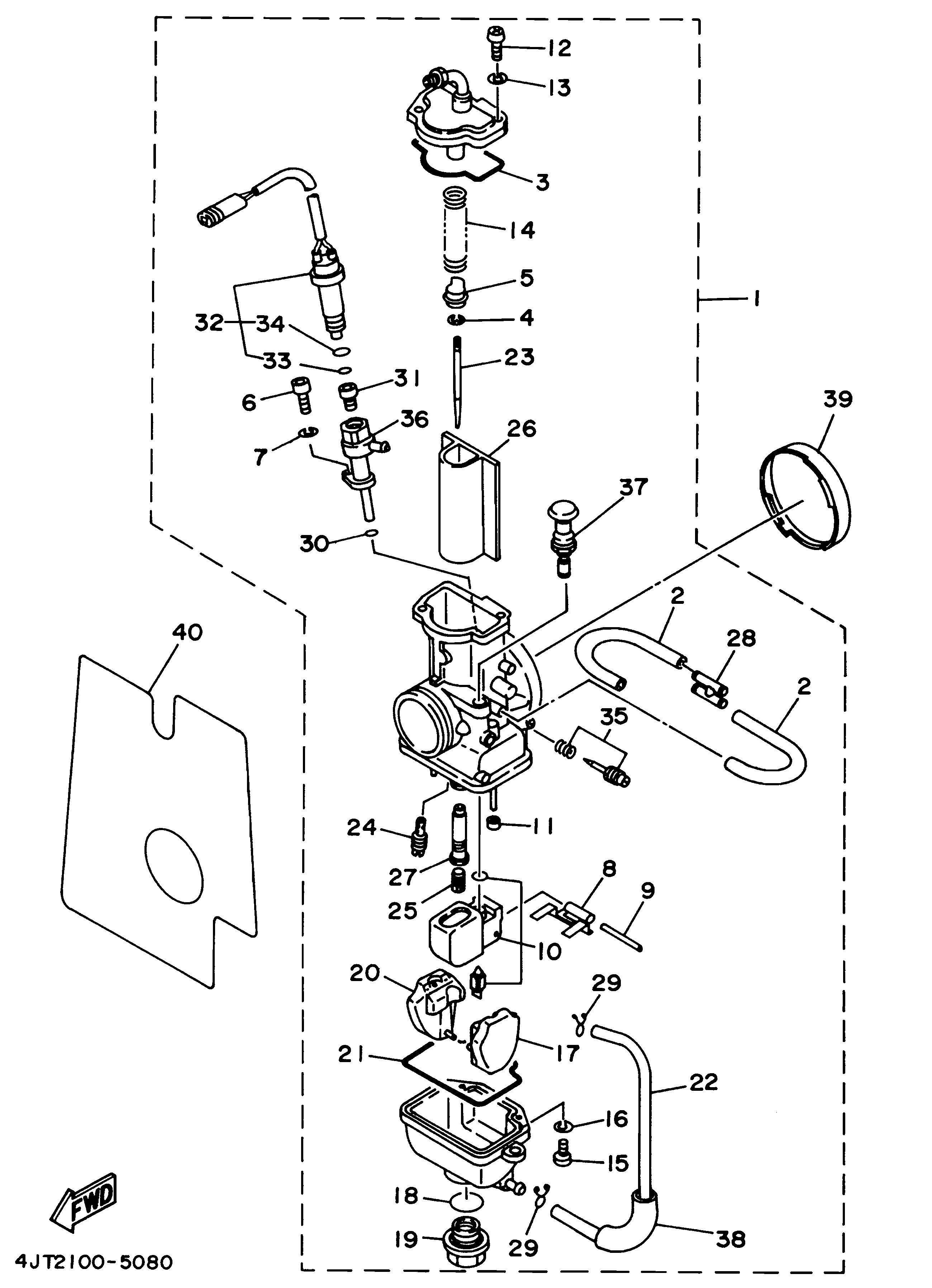

CARBURETOR ASSY 1 (se) |
1 |
0.00 |
|
| 2 |
310-14196-00 |
PIPE (se) [USE 310-14196-00R] |
2 |
2.70 |
|
| 3 |
3JD-14147-00 |
O-RING, CARBURETOR TOP COVER |
1 |
17.95 |
|
| 4 |
256-14919-00 |
CLIP, NEEDLE |
1 |
3.00 |
|
| 5 |
3JD-14194-00 |
RING, NEEDLE RETAINING (se) |
1 |
0.00 |
|
| 6 |
91317-04010 |
BOLT, SOCKET HEAD (4x10) |
1 |
0.95 |
|
| 7 |
92907-04100 |
WASHER, SPRING |
1 |
1.00 |
|
| 8 |
363-14187-00 |
ARM |
1 |
25.35 |
|
| 9 |
353-14186-00 |
PIN |
1 |
4.15 |
|
| 10 |
4DP-14107-35 |
NEEDLE VALVE SET (3.5) [USE 4DP-14107-35R] |
1 |
49.40 |
|
| 11 |
214-14118-00 |
FLOAT PIN CAP |
2 |
11.55 |
|
| 12 |
98517-04012 |
SCREW, PAN HEAD (4U5) |
2 |
0.90 |
|
| 13 |
92907-04100 |
WASHER, SPRING |
2 |
1.00 |
|
| 14 |
3JD-14131-00 |
VALVE, THROTTLE (se) |
1 |
0.00 |
|
| 15 |
98507-03010 |
SCREW, PAN HEAD |
1 |
0.90 |
|
| 16 |
92990-03100 |
WASHER, SPRING |
1 |
1.00 |
|
| 17 |
3JD-14185-00 |
FLOAT (se) |
1 |
0.00 |
|
| 18 |
3JE-14561-00 |
O-RING, DRAIN PLUG |
1 |
3.50 |
|
| 19 |
4DP-14115-00 |
PLUG, SCREW (se) |
1 |
0.00 |
|
| 20 |
3JE-14185-00 |
FLOAT (se) |
1 |
0.00 |
|
| 21 |
3JE-14147-00 |
O-RING, FLOAT BOWL |
1 |
7.00 |
|
| 22 |
3V3-14987-00 |
HOSE, OVERFLOW |
1 |
24.05 |
|
| 23 |
275-14116-F0 |
NEEDLE (se) |
1 |
0.00 |
|
| 24 |
193-14142-15 |
JET, PILOT #15 |
(1) |
26.50 |
|
|
193-14142-17 |
JET, PILOT #17.5 |
(1) |
23.05 |
|
|
193-14142-20 |
JET, PILOT (#20.0) |
1 |
22.95 |
|
| 25 |
137-1414K-12 |
JET, MAIN #560 |
1 |
15.65 |
|
|
137-1414K-08 |
JET, MAIN #540 |
(1) |
15.65 |
|
|
137-1414K-04 |
JET, MAIN #520 (se) |
(1) |
0.00 |
|
|
137-1414K-00 |
JET, MAIN #500 |
(1) |
16.45 |
|
|
137-14143-98 |
JET, MAIN #490 |
(1) |
14.35 |
|
|
137-14143-96 |
JET, MAIN #480 |
(1) |
14.35 |
|
|
137-14143-94 |
JET, MAIN #500 |
(1) |
12.05 |
|
|
137-14143-92 |
JET, MAIN #460 |
(1) |
12.05 |
|
|
137-14143-90 |
JET, MAIN #450 |
(1) |
12.05 |
|
|
137-14143-88 |
JET, MAIN #440 |
(1) |
12.05 |
|
|
137-14143-86 |
JET, MAIN #430 |
(1) |
12.05 |
|
|
137-14143-84 |
JET, MAIN #420 |
(1) |
12.05 |
|
|
137-14143-82 |
JET, MAIN #410 |
(1) |
12.05 |
|
|
137-14143-80 |
JET, MAIN #400 |
(1) |
12.65 |
|
|
137-14143-78 |
JET, MAIN #390 |
(1) |
14.35 |
|
|
137-14143-76 |
JET, MAIN #380 |
(1) |
16.05 |
|
|
137-14143-74 |
JET, MAIN #370 |
(1) |
16.05 |
|
|
137-14143-72 |
JET, MAIN #360 |
(1) |
16.05 |
|
|
137-14143-70 |
JET, MAIN #350 |
(1) |
16.05 |
|
|
137-14143-68 |
JET, MAIN #340 |
(1) |
13.85 |
|
|
137-14143-66 |
JET, MAIN #330 |
(1) |
13.85 |
|
| 26 |
4DP-14112-35 |
VALVE, THROTTLE 1 (se) |
1 |
0.00 |
|
| 27 |
3TC-14141-R3 |
NOZZLE, MAIN (R-3) (se) |
(1) |
0.00 |
|
|
3TC-14141-R4 |
NOZZLE, MAIN (R4) (se) |
(1) |
0.00 |
|
|
3TC-14141-R5 |
NOZZLE, MAIN (R5) (se) |
(1) |
0.00 |
|
|
3TC-14141-R7 |
NOZZLE, MAIN (R7) (se) |
1 |
0.00 |
|
| 28 |
8J0-14251-00 |
NIPPLE |
1 |
11.35 |
|
| 29 |
8A7-14139-00 |
CLIP, PIPE |
2 |
3.30 |
|
| 30 |
214-14147-00 |
O-RING |
1 |
11.20 |
|
| 31 |
3G2-14231-11 |
JET, POWER (#55) |
(1) |
18.10 |
|
|
3G2-14231-12 |
JET, POWER (#60) |
1 |
15.65 |
|
|
3G2-14231-13 |
JET, POWER (#65) |
(1) |
15.65 |
|
| 32 |
3LC-1410H-00 |
SOLENOID (se) |
1 |
0.00 |
|
| 33 |
3LC-14147-00 |
O-RING 2, POWER JET (se) [USE 3LC-14147-00R] |
1 |
4.17 |
|
| 34 |
3LC-1416A-00 |
O-RING, POWER JET |
1 |
18.25 |
|
| 35 |
3JD-14104-00 |
AIR SCREW SET [USE 4GL-14104-00] |
1 |
10.70 |
|
| 36 |
4DP-14261-00 |
HOLDER (se) |
1 |
0.00 |
|
| 37 |
3JE-14171-00 |
PLUNGER, STARTER |
1 |
43.10 |
|
| 38 |
4JT-14349-00 |
PIPE (se) |
1 |
0.00 |
|
| 39 |
4JT-14157-00 |
COVER, MIXING (se) |
1 |
0.00 |
|
| 40 |
4JT-14283-00 |
COVER, CARBURETOR 1 |
1 |
29.70 |
|
