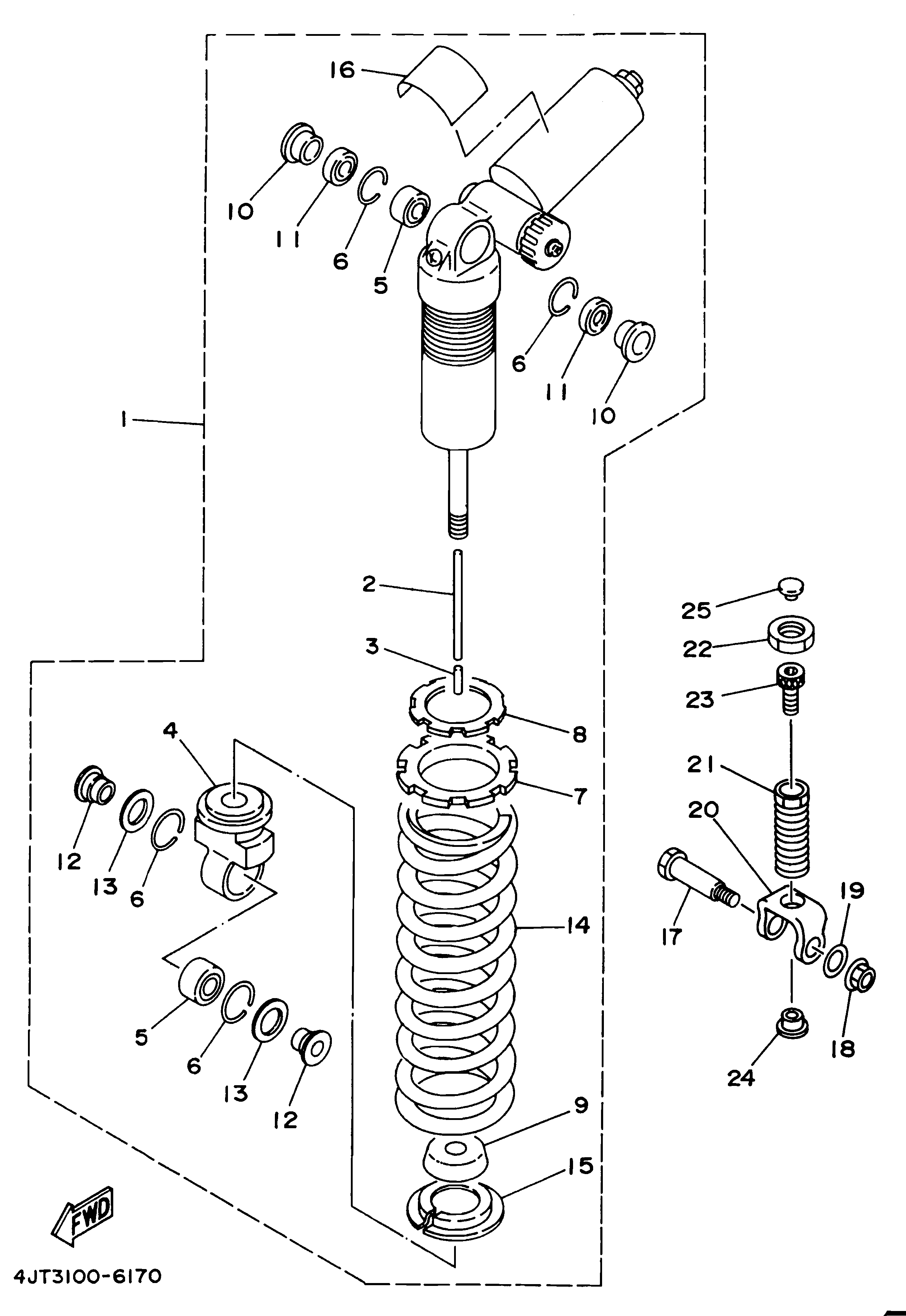

| 1 |
4JT-22210-71 |
SHOCK ABSORBER ASSY, REAR (se) |
1 |
0.00 |
|
| 2 |
4JT-22489-00 |
ROD, PUSH |
1 |
17.80 |
|
| 3 |
93605-20204 |
PIN, DOWL (se) |
1 |
0.00 |
|
| 4 |
4DP-22219-00 |
BRACKET, UPPER (se) |
1 |
0.00 |
|
| 5 |
93399-999T4 |
BEARING |
2 |
63.80 |
|
| 6 |
93440-30113 |
CIRCLIP (23X) |
4 |
2.00 |
|
| 7 |
1KH-22223-00 |
SEAT, SPRING LOWER |
1 |
63.50 |
|
| 8 |
1RK-22215-00 |
RING, COVER |
1 |
19.90 |
|
| 9 |
3AK-22493-00 |
BUMP, STOP |
1 |
22.90 |
|
| 10 |
3YL-22253-00 |
COLLAR ,DISTANCE |
2 |
37.00 |
|
| 11 |
23X-22211-00 |
COVER |
2 |
8.10 |
|
| 12 |
4JT-22253-41 |
COLLAR, DISTANCE (se) |
2 |
0.00 |
|
| 13 |
4DP-22211-00 |
COVER |
2 |
26.15 |
|
| 14 |
4JT-22212-41 |
SPRING, REAR SHOCK ABSORBER |
1 |
48.55 |
|
| 15 |
22W-22214-01 |
GUIDE, SPRING 1 |
1 |
13.20 |
|
| 16 |
4AA-22259-00 |
LABEL, WARNING (USA/CANADA) (se) |
1 |
0.00 |
|
|
4AA-22259-10 |
LABEL, WARNING (CANADA) (se) |
1 |
0.00 |
|
|
4AA-22259-50 |
LABEL, WARNING (JAPAN) |
1 |
2.80 |
|
|
4AA-22259-40 |
LABEL, WARNING (EUROPE) |
1 |
6.10 |
|
| 17 |
90101-10709 |
BOLT, HEX (se) |
1 |
0.00 |
|
| 18 |
95617-10200 |
NUT, SELF-LOCKING |
1 |
6.60 |
|
| 19 |
90201-127J6 |
WASHER,PLATE |
1 |
1.65 |
|
| 20 |
4JT-22219-00 |
BRACKET, REAR CUSHION UPPER MOUNT (se) |
1 |
0.00 |
|
| 21 |
4JT-22239-00 |
ADJUSTER (se) |
1 |
0.00 |
|
| 22 |
1RK-22251-00 |
NUT 1 |
1 |
26.85 |
|
| 23 |
91317-10016 |
BOLT, SOCKET (10x16) (se) |
1 |
0.00 |
|
| 24 |
3AK-22252-00 |
NUT |
1 |
66.45 |
|
| 25 |
90480-14153 |
GROMMET (420) |
1 |
2.75 |
|
