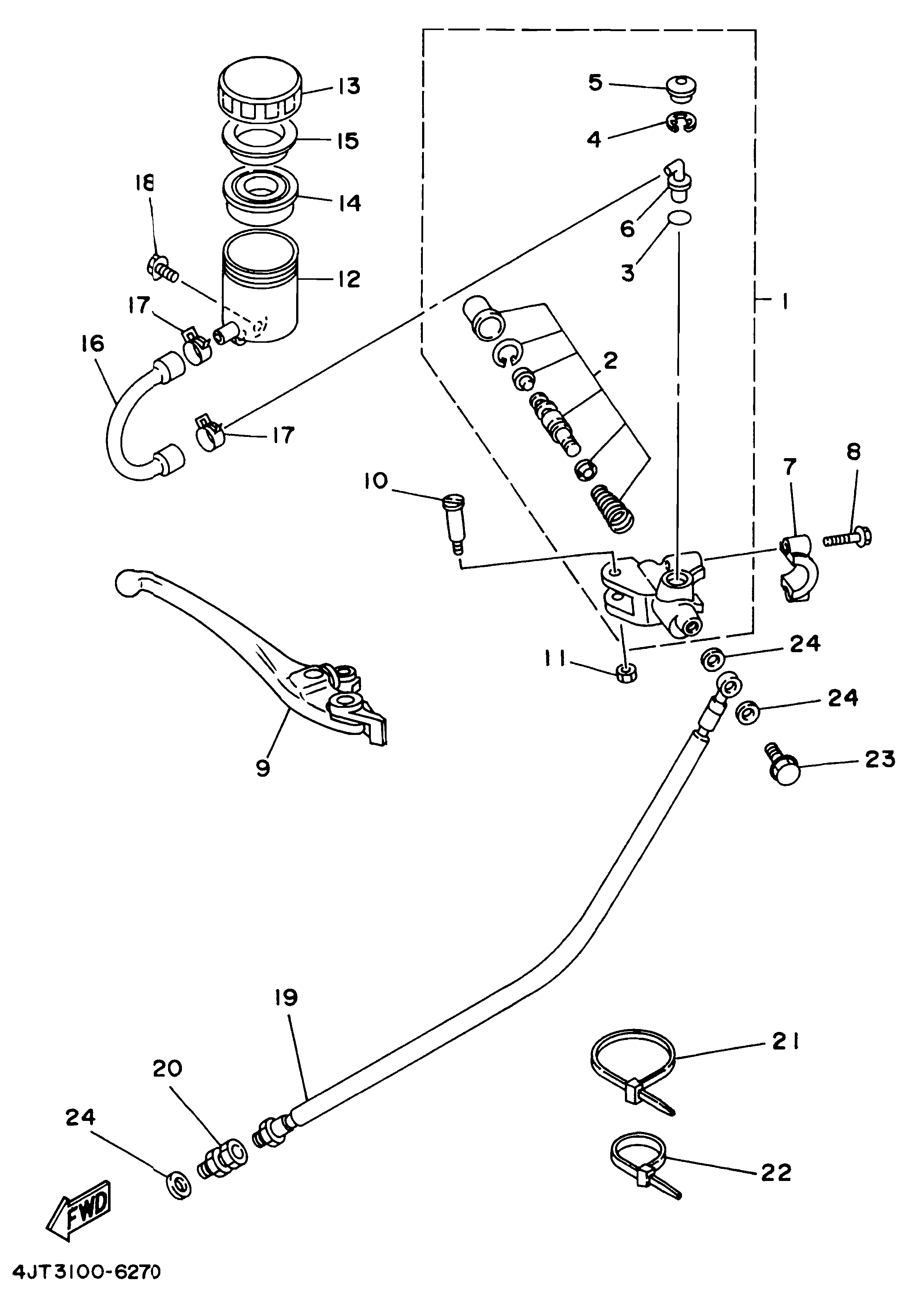

| 1 |
4JT-W2587-10 |
MASTER CYLINDER SUB ASSY, FRONT [USE 4SV-W2587-10] |
1 |
140.45 |
|
| 2 |
4JT-W0041-10 |
SEAL KIT, FRONT MASTER CYLINDER [USE 4SV-W0041-00] |
1 |
48.95 |
|
| 3 |
93210-15620 |
O-RING (34J) 63 [USE 93210-15566] |
1 |
1.10 |
|
| 4 |
2VN-25866-00 |
CIRCLIP |
1 |
3.00 |
|
| 5 |
3FV-2589A-00 |
COVER, DUST |
1 |
7.25 |
|
| 6 |
2VN-2582A-50 |
JOINT, FRONT MASTER CYLINDER |
1 |
9.40 |
|
| 7 |
56A-25867-00 |
BRACKET, MASTER CYLINDER |
1 |
13.20 |
|
| 8 |
95026-06025 |
BOLT, FLANGE (36Y) |
2 |
1.25 |
|
| 9 |
4JT-83922-00 |
LEVER, BRAKE |
1 |
35.20 |
|
| 10 |
3FV-2589F-00 |
BOLT, FRONT BRAKE LEVER |
1 |
6.10 |
|
| 11 |
95606-06100 |
NUT U(4L0) [USE 95617-06100] |
1 |
1.00 |
|
| 12 |
3FV-25894-00 |
TANK, RESERVOIR |
1 |
27.80 |
|
| 13 |
3FV-25852-00 |
CAP, RESERVOIR |
1 |
21.40 |
|
| 14 |
3FV-25854-00 |
DIAPHRAGM, RESERVOR |
1 |
10.90 |
|
| 15 |
2J2-25855-50 |
BUSH, DIAPHRAGM |
1 |
6.75 |
|
| 16 |
3YL-2582F-00 |
HOSE |
1 |
15.50 |
|
| 17 |
3PA-24356-00 |
CLIP,PIPE 1 |
2 |
3.00 |
|
| 18 |
95027-06014 |
BOLT, FLANGE |
1 |
1.50 |
|
| 19 |
4DP-25873-00 |
HOSE, FRONT BRAKE RIGHT (se) |
1 |
0.00 |
|
| 20 |
3LC-25885-00 |
JOINT |
1 |
18.95 |
|
| 21 |
90465-13275 |
CLAMP (51X) |
1 |
2.65 |
|
| 22 |
90465-13152 |
CLAMP (4A0) |
1 |
1.00 |
|
| 23 |
90401-10159 |
BOLT, UNION |
1 |
3.00 |
|
| 24 |
90201-10118 |
WASHER PLATE (481) |
3 |
1.10 |
|
