1999 Yamaha TZ125 (4JT6) - E10 Intake / Reed Valve

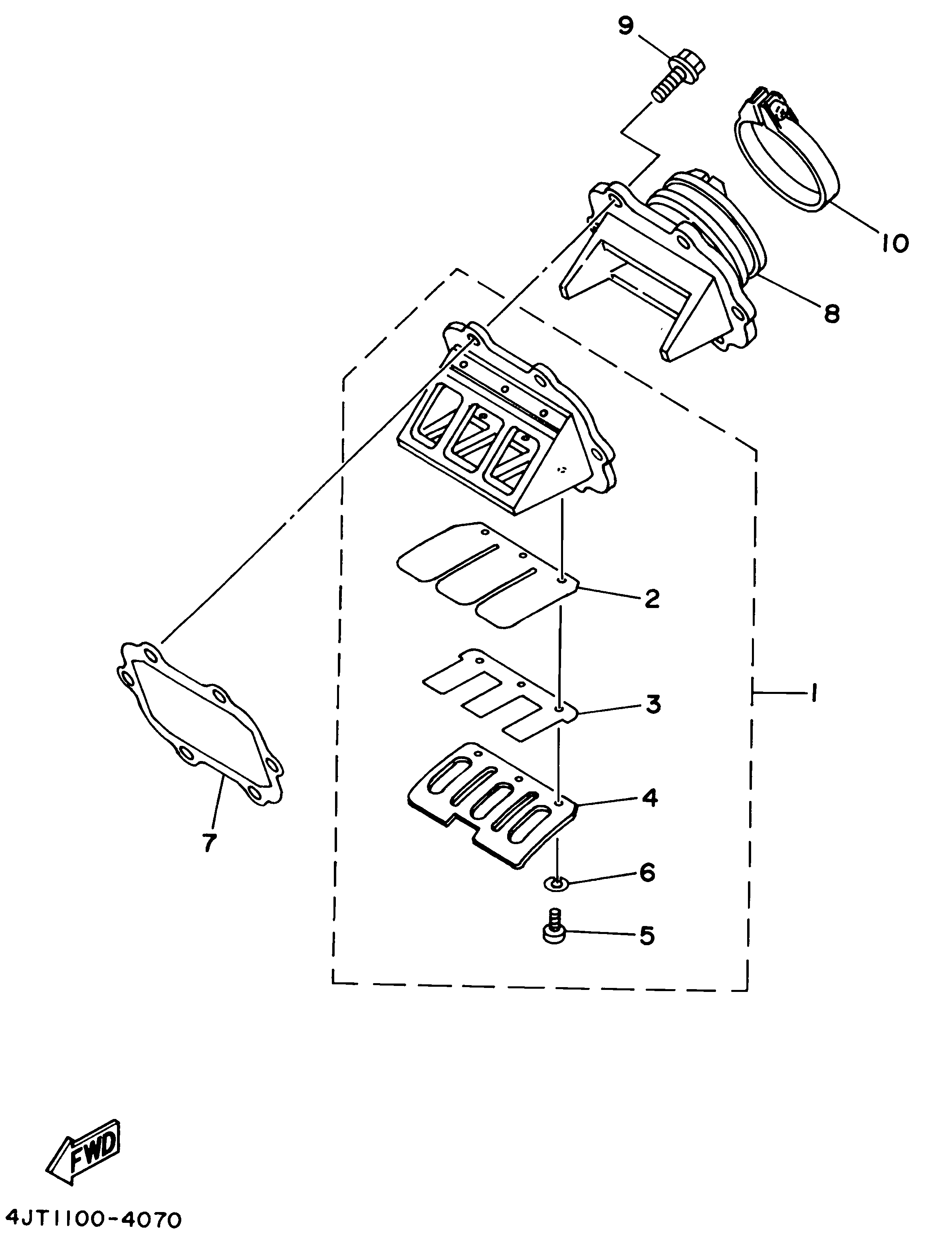

Technical Sports One, LLC 1999 Yamaha TZ125 (4JT6) Intake Manifold / Reed Valve

This image is the property and copyright of Yamaha Motor Co., Ltd


Ref Part Number Description Qty Req Qty 1 Price Buy
1 4JT-13610-00 REED VALVE ASSY 1 213.75
2 3XV-13613-01 PEDAL, REED VALVE 2 13.70
3 4JT-13614-00 REED VALVE 2 (se) 2 0.00
4 4JT-13616-00 STOPPER, REED VALVE (TZ125) (se) 2 0.00
5 98507-03006 SCREW, PAN 6 1.60
6 92907-03100 WASHER, SPRING [USE 92990-03100] 6 1.00
7 4JT-13621-00 GASKET, REED VALVE SEAT 1 4.70
8 4JT-13555-20 MANIFOLD, INTAKE (se) 1 0.00
9 91317-06020 BOLT, SOCKET HEAD (6x20) 6 0.95
10 90450-52058 HOSE CLAMP ASSY 1 14.15
